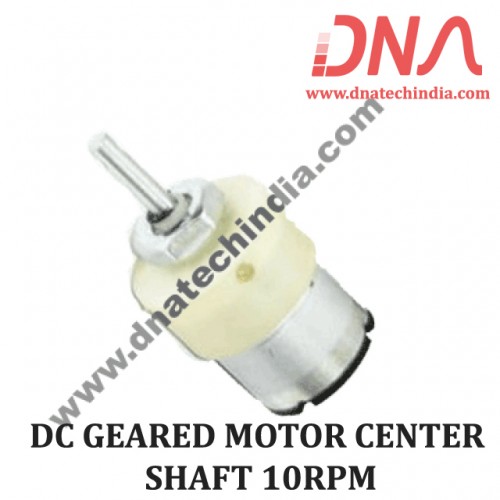

10RPM Center shaft DC Geared Motor Description:
10RPM Centre Shaft DC Motor is high quality low cost DC geared motor for Robotic Application. It has steel gears and pinions to ensure longer life.. The gears are fixed on hardened steel spindles polished to a mirror finish. The output shaft rotates in a plastic bushing. The whole assembly is covered with a plastic ring. Gearbox is sealed and lubricated with lithium grease and require no maintenance. The motor is screwed to the gear box from inside. Although motor gives 10 RPM at 12V but motor runs smoothly from 4V to 12V and gives wide range of RPM, and torque.
10RPM Center shaft DC Geared Motor Specifications:
DC supply: 4 to 12V
Speed: 10RPM at 12V
Brush type: Precious metal
Output shaft: Centred
Shaft diameter: 6mm
Motor weight: 105gms
|
