Product Images are shown for illustrative purposes only and may differ from actual product.

Infrared Proximity Sensor GP2Y0A02

  • Stock: Out Of Stock
  • SKU: 1096 | DAA461
  • Rs. 824.82 (inc GST)
    Rs.699.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

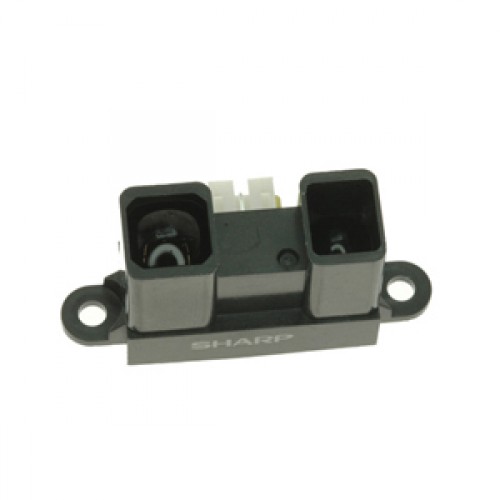

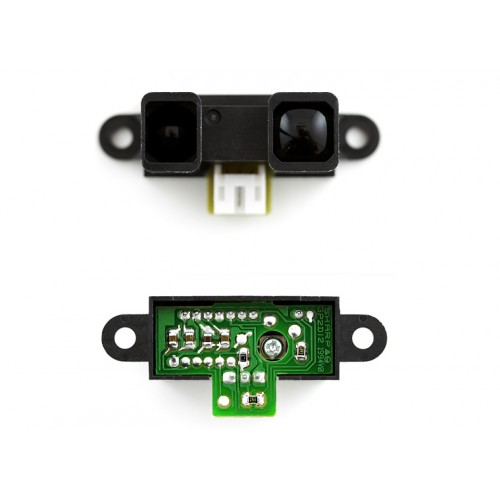

Infrared Proximity Sensor GP2Y0A02

GP2Y0A02 is Infrared proximity sensor made by sharp.

This sensor takes a continuous distance reading and reports the distance as an analog voltage with a distance range of 20 cm (~8") to 150 cm (~60"). The interface is 3-wire with power, ground and the output voltage and requires a JST 3-pin connector (not included).

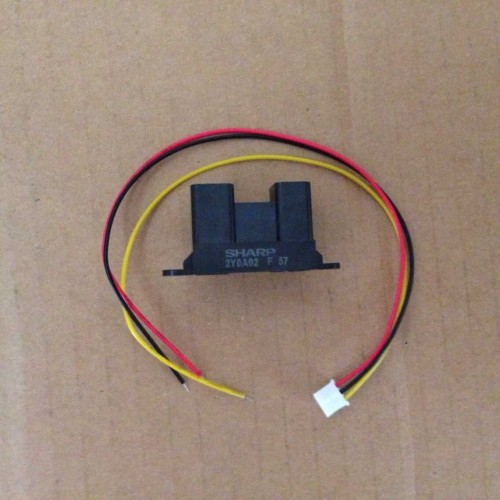

The Japanese Solderless Terminal (JST) 3-pin connector includes the J3 connector for the sensor and bare wires at the other end, and requires that the processor or ADC-side connector be purchased or built separately.

Features of GP2Y0A02

  • Distance measuring range : 20 to 150 cm
  • Package size : 29.5x13x21.6 mm
  • Consumption current : Typ 33 mA

  • Supply Voltage VCC : -0.3 to +7V
  • Output Terminal Voltage VO: -0.3 to VCC +0.3V
  • Operating Temperature Topr : -10 to +60°C
  • Storage Temperature Tstg : -40 to +70°C
  • Operating Supply Voltage VCC : 4.5 to 5.5V
  • Output Type : Analog Type

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
