Wind Speed Sensor FS-100A

  • Stock: Out Of Stock
  • SKU: 1667 |
  • Rs. 8,850.00 (inc GST)
    Rs.7,500.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

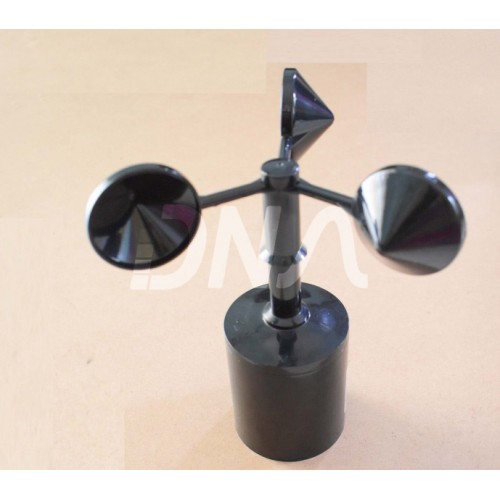

Wind Speed Sensor FS-100A

FS-100A is a high strength carbon fiber based good quality wind speed sensor also know as Anemometer.

FS-100A uses the traditional three cup. The wind sensor has high quality light metal body which responds to the wind speed the sensor has good wind measuring range, high resolution and accuracy.

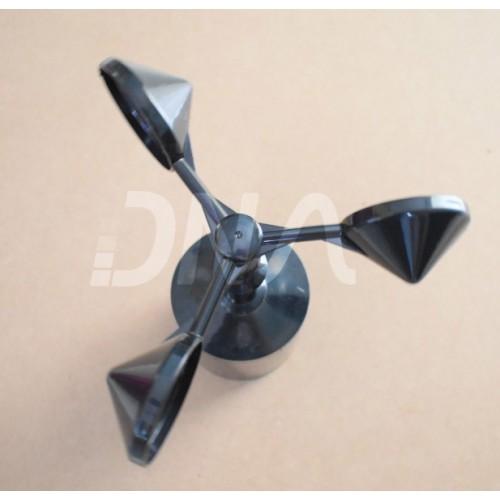

The sensing element of the FS-100A  wind speed sensor is a three-cup wind assembly consisting of three carbon fiber cups and cup holders. A multi-tooth rotor is used along with a slit opto-coupler. When the wind cup rotates the multi-tooth rotor also starts rotating and accordingly the opto-coupler outputs pulse signal. The pulses generated is proportional to the wind speed.

Formula for wind speed calculation:

             W = 0.1 + 0.0875 × f ( f≠ 0)

where W: Wind Speed in Meters/Second (m/s)

f : Pulse signal frequency

This wind speed sensor along with wind direction sensor (FX-100) is perfect for making your own weather station

Features of FS-100A Wind Speed Sensor

  • Measuring range : 0 to 70 m/s
  • Accuracy : ±(0.3+0.03 V) m/s
  • Resolution : 0.1 m/s
  • Starting wind speed : ≤0.5 m/s
  • Power supply : DC 5 Volt
  • Output form : Wind speed : Pulse
  • Wire Length :  2.5 meters
  • Load capacity : Current output impedance ≤150Ω
  • Voltage output impedance ≥500Ω
  • Temperature -40 °C ~ 50 °C
  • Humidity ≤ 100% RH
  • Protection level : IP65
  • Material : anti-flame retardant material ABS plastic
  • Power Consumption : 50 - 60 mw

The Sensor has a 3-core aviation plug at the bottom, and the output is three-wire

  1. Red wire : Power
  1. yellow wire : Output signal
  1. Black wire : Ground

The sensor has good linearity and lightning resistance.It is stable and reliable and can be widely used in meteorology, oceans, environment, airports, ports, Laboratory, industry and in agriculture field.

NOTE this is not a plastic body anemometer for your hobby/academic  project this is a Industrial Grade carbon fiber based wind sensor which and can be used for practical application to make your own weather station.

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
