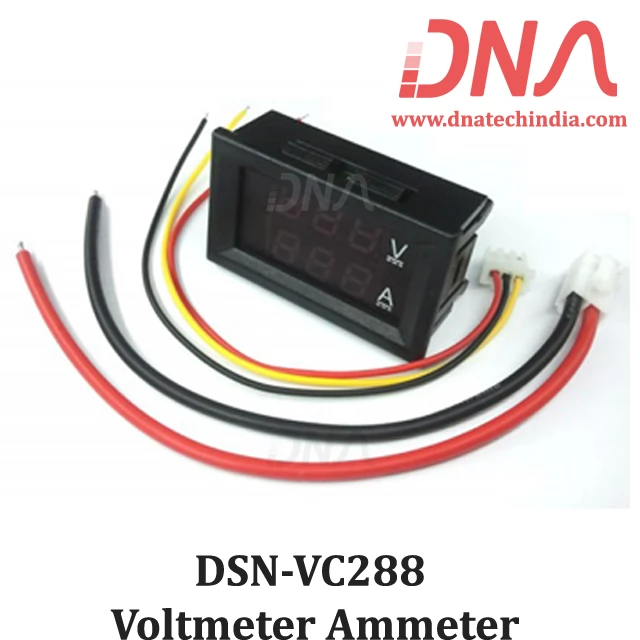

DSN-VC288 Voltmeter Ammeter

  • Product Code: 1080
  • Availability: 3
  • Rs.577.02 (inc GST)

Shipping : Same day dispatch for Most orders if payment done before 4pm. Delivery Normally takes 2 to 7 working days depending upon your location.

If you require more quantity than what is currently in stock or you want to buy in bulk quantity e-mail us your requirements on: dnatechindia "at" gmail.com


DSN-VC288 Voltmeter Ammeter

Want a Low cost Digital Voltmeter & Ammeter then this is a perfect Module for you. If you are an Hobbyist or a student or are into electronics R&D then this low cost Voltmeter & Ammeter combo module will be very helpful for your testing.

Features of VC288

  • Working voltage of Meter itself:DC 4 - 30V (The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)

  • Working current of Meter itself:=20mA

  • Voltage Measuring range: DC 0 - 100V

  • Current Measuring range: DC 0 - 100A

  • Voltage resolution (V): 0.1V

  • Current resolution (A): 0.1A (Measuring current<10A), 1A (Measuring current>=10A)

  • Measure accuracy: 0.1% (± 1 digit)

  • Display: 0.28" digital tube, Two color blue and red

  • Refresh rate: about 300mS / times

  • Dimensions: 48mm*29mm*26mm

  • Operation Temp: -10oC-+65oC
