• HP2631 Dual Channel Optocoupler

HP2631 Dual Channel Optocoupler

  • Product Code: 993
  • Availability: 3
  • Rs.109.00

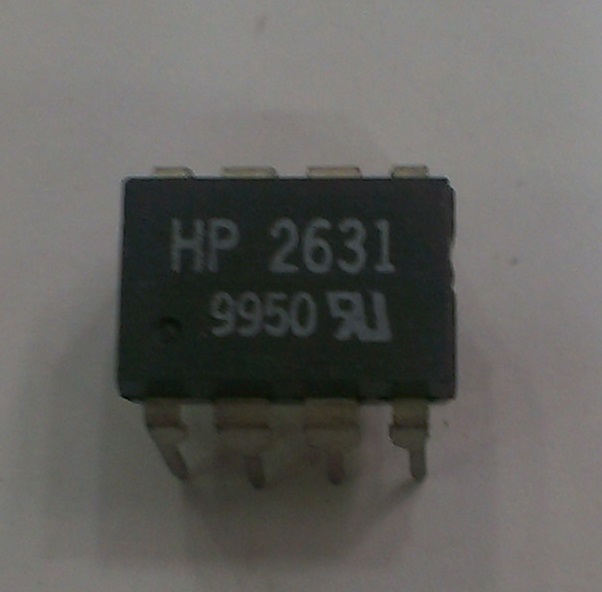

HP2631 Dual Channel Optocoupler

The 6N137, HCPL-2601/2611 single-channel and HCPL-2630/2631 dual channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8).

An internal noise shield provides superior common mode rejection of typically 10 kV/μs. The HCPL- 2601 and HCPL- 2631 has a minimum CMR of 5 kV/μs. The HCPL-2611 has a minimum CMR of 10 kV/μs.

Features of HP2631

  • Very high speed-10 MBit/s

  • Superior CMR-10 kV/μs

  • Double working voltage-480V

  • Fan-out of 8 over -40°C to +85°C

  • Logic gate output

  • Strobable output

  • Wired OR-open collector

  • U.L. recognized (File # E90700)


Applications of HP2631

  • Ground loop elimination

  • LSTTL to TTL, LSTTL or 5-volt CMOS

  • Line receiver, data transmission

  • Data multiplexing

  • Switching power supplies

  • Pulse transformer replacement

  • Computer-peripheral interface
