M95 GSM Modem

  • Product Code: 1702
  • Availability: 5
  • Rs.1,416.00 (inc GST)

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4pm. Delivery Normally takes 2 to 7 working days depending upon your location.

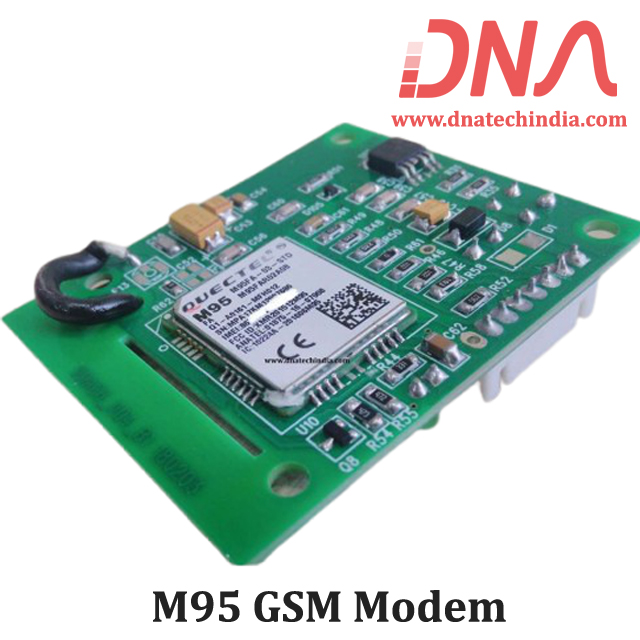

Quectel M95 TTL GSM Modem

This is a TTL GSM Modem based on the Quectel's M95 GSM/GPRS chipset this modem is perfect for testing the chipset or using it directly in your product.

Features of M95 GSM Modem

  • UART Communication 3.3 Volt TTL level
  • Supply Voltage: 5 volt to 6 volts Vdd
  • Current Required: 1.5 Ampere to 2 Ampere
  • Power Control via Modem ON/OFF pin
  • Option to connect battery for RTC Backup
  • Modem Status pin to check status of the module
  • On-Board PCB etched Antenna
  • Option to add external antenna
  • Tested on Indian Mobile Networks

M95 GSM Module Pinouts

  1. Vdd : 5 Volts
  2. Rx Pin (3.3 volt compatible)
  3. Tx Pin (3.3 volt compatible)
  4. Module ON/OFF PIN
  5. Module Status Pin
  6. Ground
  7. Ground
  8. Vbat: Battery for RTC backup
