Asus Tinker Board

  • Stock: Out Of Stock
  • SKU: 2433 |
  • Rs. 8,258.82 (inc GST)
    Rs.6,999.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

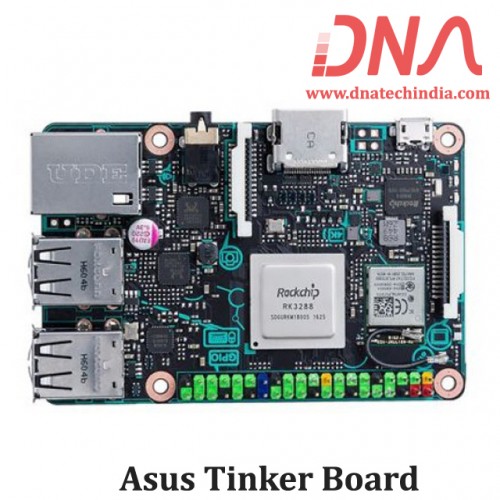

Asus Tinker Board

Asus Tinker Board is now Available in India and DNA Technology is the first Online shop in India to make this board easily available to all engineers out there.

Tinker Board is a Single Board Computer (SBC) in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The Tinker Board offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering ideas into reality.

We have Various sizes of Single Board Computer SBC.Check out our complete collection of Single Board Computer SBC


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Asus Tinker Board

  • High performance quadcore arm soc 1. 8ghz with 2gb of ram -the tinker board features the rock chip rk3288 soc with mali - t764 gpu and 2gb of dual channel ddr3 memory
  • Non shared gbit lan, shielded wi-fi with upgradable antenna support
  • Highly compatible pcb & topology, tinker board offer extensive compatibility with sbc accessories & chassis
  • Hd audio & hd & uhd video support tinker board supports hd audio 192/24bit audio along with accelerated hd & uhd ( 4k ) video playback support* requires use of rock chip video player in tinkeros
  • Diy friendly design tinker board features multiple diy friendly use features including a color coded gpio header, silkscreen pcb and color coded pull tabs

Class Leading Performance

Using a powerful and modern quad-core ARM-based processor, the Rockchip RK3288, the Tinker Board offers significantly improved performance versus other popular SBC boards. Realizing the growing demands of different builds and projects, the Tinker Board features 2GB of LPDDR3 dual-channel memory. Tinker Board is also equipped with an SD 3.0 interface that offers significantly faster read and write speeds to expandable microSD cards used for the OS, applications and file storage.

Robust GPU Performance & Functionality

Featuring a powerful but energy-efficient design, the Tinker Board supports next-generation graphics and GPU Compute API's. Powered by an ARM-based Mali™-T764 GPU, the Tinker Board's GPU and fixed function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more. Multimedia enthusiasts will appreciate the fixed-function H.264 and H.265 playback support, including playback of HD and UHD video.

Maker-Friendly, with IoT Connectivity

Tinker Board features standard maker and hobbyist connectivity options, including a 40-pin GPIO interface. Additionally, it also equipped with two HD MIPI connections, allowing for HD displays and HD cameras. The Tinker Board also features Gbit LAN connectivity, offering superior throughput, perfect for network centric and LAN storage applications. Moreover, the LAN port on the Tinker Board receives dedicated bus resource, ensuring consistent Ethernet performance throughout. The integrated Wi-Fi and Bluetooth controller are shielded with metal cover, ensuring minimal interference and improved radio performance. There is also IPEX antenna header for upgrades.

Rounding out its connection options, Tinker Board also features a full-size HDMI output for connection to TVs, monitors and other HDMI-enabled displays, as well as four USB 2.0 ports for extensive peripheral and accessory connectivity.

Enhanced DIY Design

Careful consideration went into the design and development of the Tinker Board to provide a superior end user experience for first-time builders or experienced hobbyists. Makers will appreciate the improved visibility and clarity of the color-coded GPIO header that allows for quick and easy recognition of respective pin headers.

The PCB dimensions and topology of the Tinker Board are also in line with the standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB also features silk-screening with connection header and location callouts, for improved connection clarity. Onboard MIPI headers also feature contrasting colored pull tabs. Finally, the Tinker Board also includes a heat-sink, which helps improve heat dissipation under heavy loading or in hot ambient environments.

Links for More Information

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
