• XL7005A IC

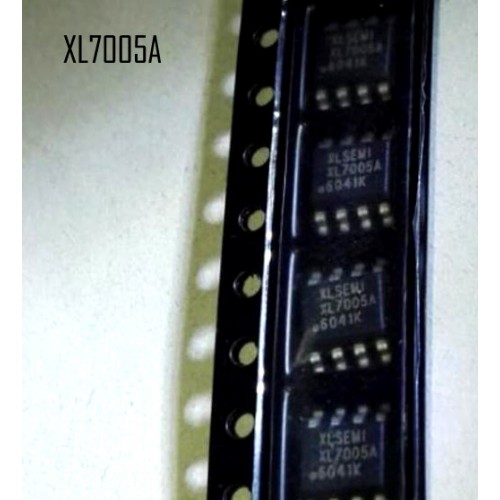

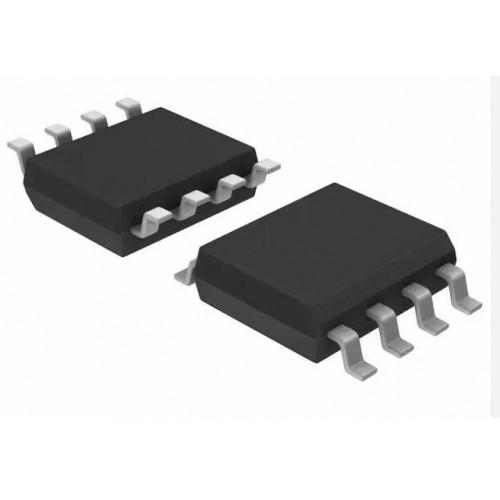

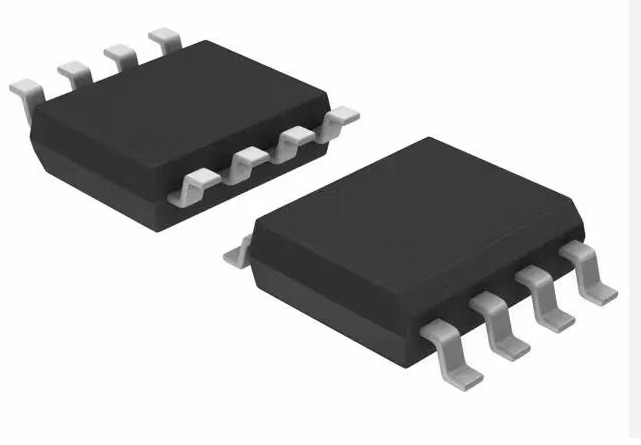

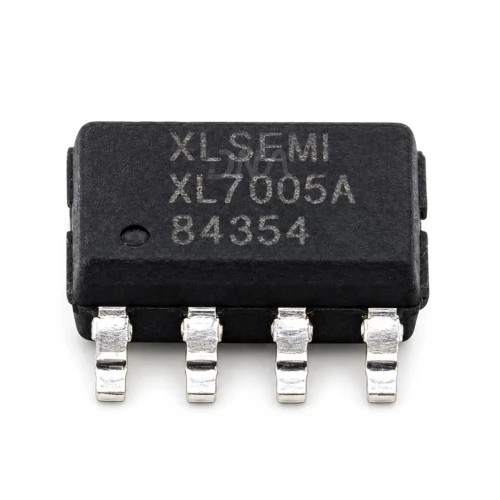

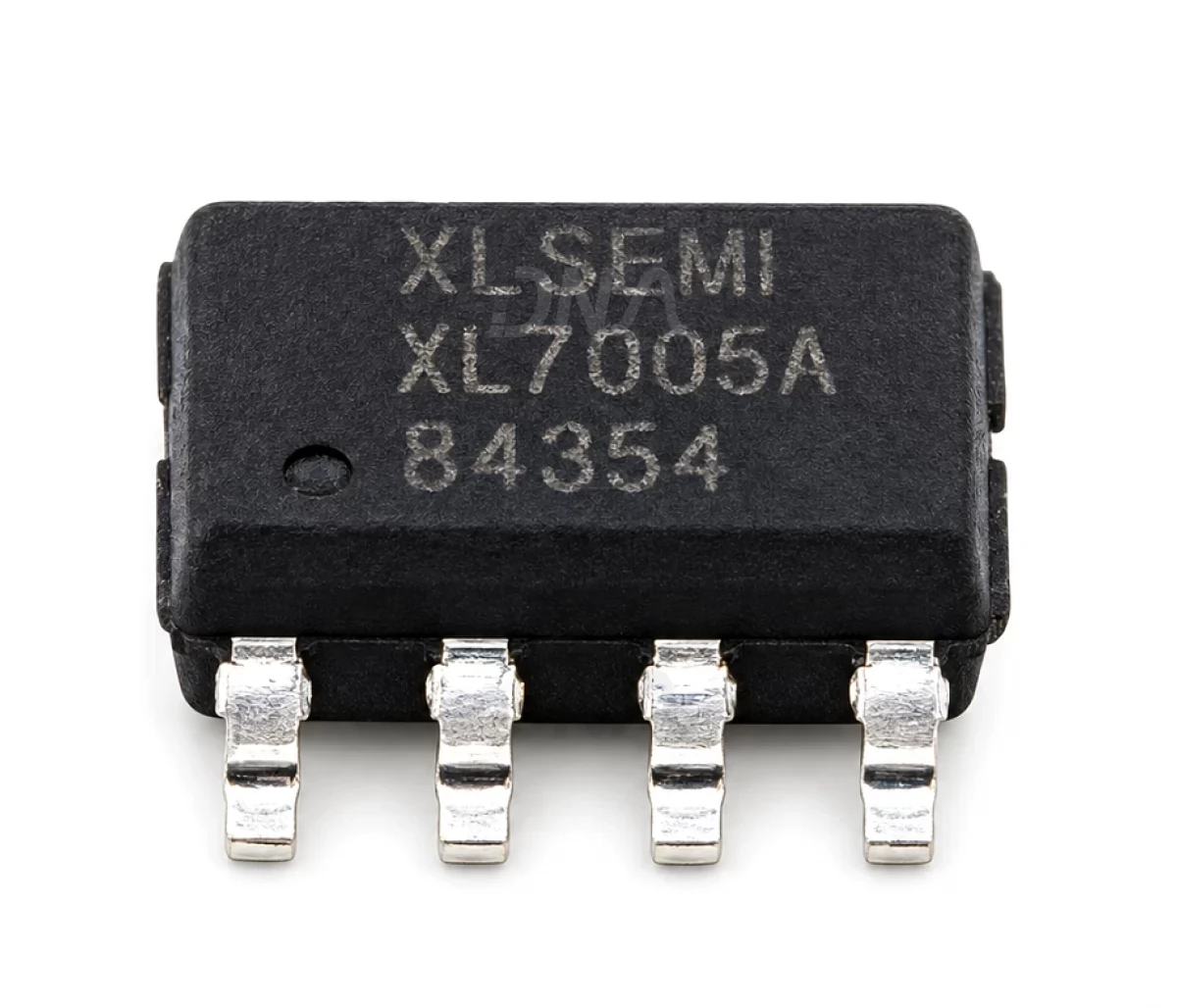

Product Images are shown for illustrative purposes only and may differ from actual product.

XL7005A IC

  • Brand: XL Semi
  • Product Code: 1560
  • Availability: 95
  • Price :

    Rs.29.50 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

XL7005A IC

The XL7005A is a 150KHz fixed frequency PWM buck (step down) DC to DC converter IC. This IC is capable of driving a 0.4 Ampere load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When output short protection function happens, the operation frequency will be reduced from 150KHz to 45KHz. An internal compensation block is built in to minimize external component count.

Features of XL7005A IC

  • Wide 5V to 80V Operation Voltage
  • Output Adjustable from 1.25V to 20V
  • Maximum Duty Cycle 100%
  • Minimum Drop Out 1V
  • Fixed 150KHz Switching Frequency
  • Maximum 0.4A Output Current
  • Recommend output power less than 5W
  • Internal Optimize HV Power Transistor
  • High efficiency up to 85%
  • Excellent line and load regulation
  • TTL shutdown capability
  • Built in thermal shutdown function
  • Built in output short Protection Function
  • Built in current limit function
  • SOP8-EP (Exposed PAD) package


Applications of XL7005A IC

  • Ebike Controller Power Supply
  • Telecom / Networking Equipment
