4Pin 128X64 White Color OLED Display Module
- Stock: 5
- Brand: Generic
- SKU: 1011 | DAA881
-
Rs. 322.14 (inc GST)
Rs.273.00 + GSTQty :
| Also Available: Humidity & Temperature Sensor Case(Black) in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

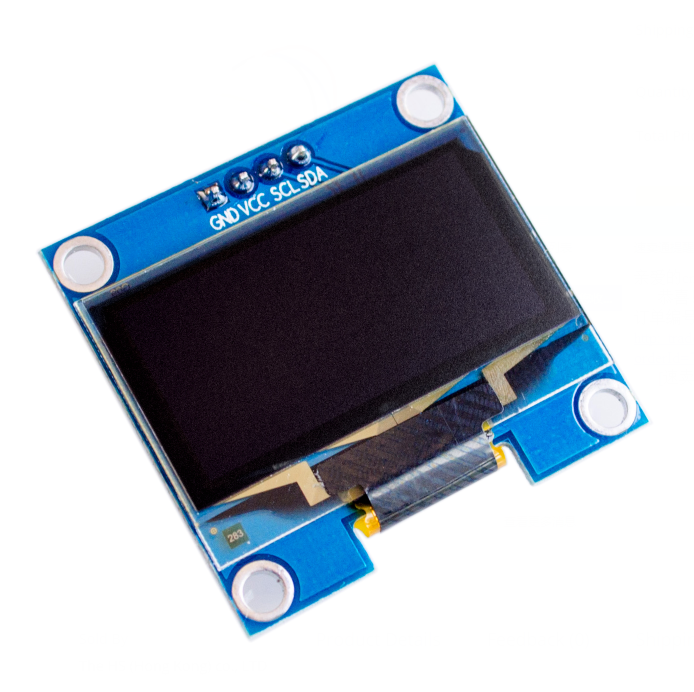

4Pin 128X64 White Color OLED Display
This is a 0.96 inch white OLED display module.
The display module can be interfaced with
any microcontroller using SPI/IIC protocols. It is having a resolution
of 128x64. The package includes display board,display, 4 pin male header presoldered to board.
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
OLED monochrome 128x64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.
Features of 4 pin 128 x 64 OLED Display
Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Display size : 0.96'
Resolution radio :128 x 64
Interface modes : I2C
working voltage : 3.3V
Control Chip : SSD1306
Interface pin for 4 PIN 128x64 OLED
- VCC : 3.3 volts - 5 Volts
- GND : Ground
- SCL : Serial Clock
- SDA : Serial Data
