5S Lithium Battery Charger BMS HX-5S-15A Module


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-06-22

  • Brand: Generic
  • SKU: 1958 | DAB743

Availability: NotInStock priceValidUntil: 2026-06-22

  • Rs. 292.05 (inc GST)
    Rs.247.50 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

5S Lithium Battery Charger BMS HX-5S-15A Module

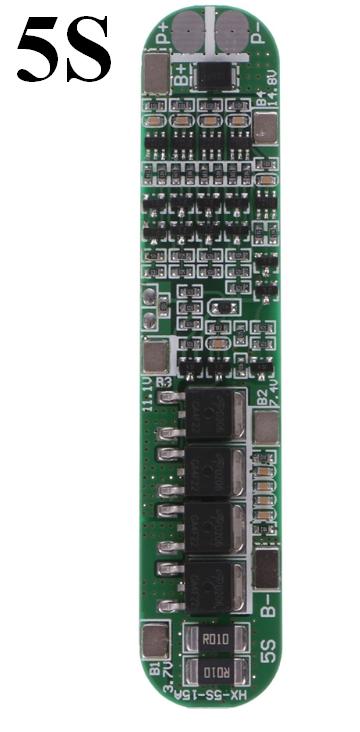

18650 Lithium Battery Charger BMS Protection Board HX-5S-15A Module

This board is 5 string 3.7V/4.2V lithium battery protection board High current protection board, continuous 15A current Protection board with overcharge protection, over-discharge protection, over-current protection, short circuit protection.
B+ B-is the abbreviation of battery, which is the positive and negative pole of the battery.

P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles

Specifications Of 18650 Lithium Battery Charger BMS Protection Board HX-5S-15A Module

Discharge:

  • Continuous discharge current : 15A(max)

  • Instantaneous discharge current : 25A

Charge:

  • Charge voltage : 21V

  • Charging current : 15A(max)

Overcharge Protect:

  • Over-charge detect : 4.28±0.05V

  • Protect delay : 0.5s

  • Over-charge release : 4.28±0.05V

Over-discharge Protect :

  • Over-discharge detect : 2.55±0.08V

  • Over-discharge detect delay : 0.1s

  • Release voltage : 2.9±0.1V

Short-circuit Protect :

  • Protect condition : Cut load

  • Detect delay : 250uS

  • Release condition : Cut load

Over-current Protect :

  • Detect voltage : 150mV

  • Detect delay : 9MS

  • Current detect : 30±3A

  • Release condition : Cut load

  • Inner Resistance : ≤20mΩ

Self-consumption :

  • Working current : ≤30uA

  • Sleep current : (when over-charge)≤10uA

  • Working Temperature Range : -30-+80
