Product Images are shown for illustrative purposes only and may differ from actual product.

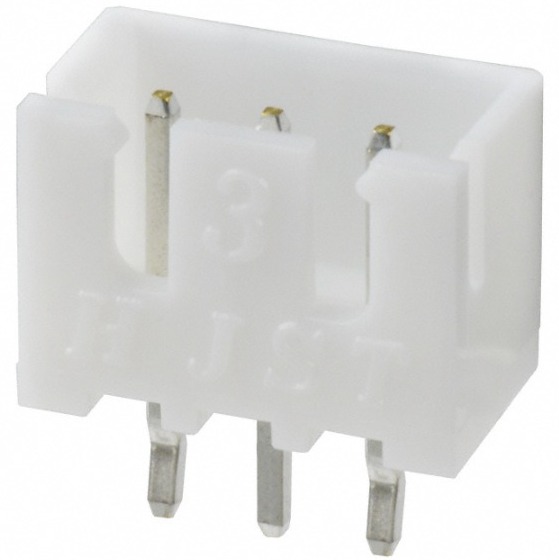

B3B-XH-A Connector Header

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-06-22
Brand: Generic
SKU: 8089 | DAH140

Rs. 1.10 (inc GST)
Rs.0.93 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

JST B3B-XH-A 3-Position Connector Header

B3B-XH-A Connector Header for wire-to-board connections, 2.5mm pitch, 3A current rating.

The JST B3B-XH-A 3-Position Connector Header is designed for wire-to-board connections. This header features a 2.5mm pitch and operates efficiently within a temperature range of -25°C to +85°C. It offers a reliable connection with a current rating of 3A and a voltage rating of 250V AC/DC. The brass contacts are tin-plated for durability, ensuring long-lasting performance in various applications.

Ideal for consumer electronics, industrial equipment, and automotive electronics, the B3B-XH-A provides secure mating with its detent lock feature. With a mounting style of through-hole and vertical orientation, it simplifies installation in tight spaces. The insulation material is polyamide, meeting flammability standards of UL94 V-0 for added safety.

Explore the versatility of the JST B3B-XH-A 3-Position Connector Header for your next project. Its robust design and specifications make it a preferred choice for reliable connections in a variety of electronic applications.

Explore our range of Connectors and Cables at DNA Solutions. The JST brand offers high-quality components perfect for your electronic needs. Check other "Connectors and Cables" that we have in stock.

If you're searching for specific electronic components, reach out to us at DNA Solutions. We can help you find microcontrollers, sensors, diodes, and more, including import options if needed. Contact Us.

Features of JST B3B-XH-A 3-Position Connector Header

3 positions
2.5mm pitch
Through-hole mounting
Detent lock for secure mating
Brass contacts with tin plating
UL94 V-0 flammability rating

Specification of JST B3B-XH-A 3-Position Connector Header

Number of Positions: 3
Pitch: 2.5mm
Current Rating: 3A
Voltage Rating: 250V AC/DC
Operating Temperature: -25°C to +85°C

Applications of JST B3B-XH-A 3-Position Connector Header

Consumer electronics
Industrial equipment
Automotive electronics

Package Includes

1 X JST B3B-XH-A 3-Position Connector Header

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
