Product Images are shown for illustrative purposes only and may differ from actual product.

2S Li-Ion BMS HX-2S-JH10 Module

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-06-22
Brand: Generic
SKU: 1952 | DAB735

Rs. 177.00 (inc GST)
Rs.150.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

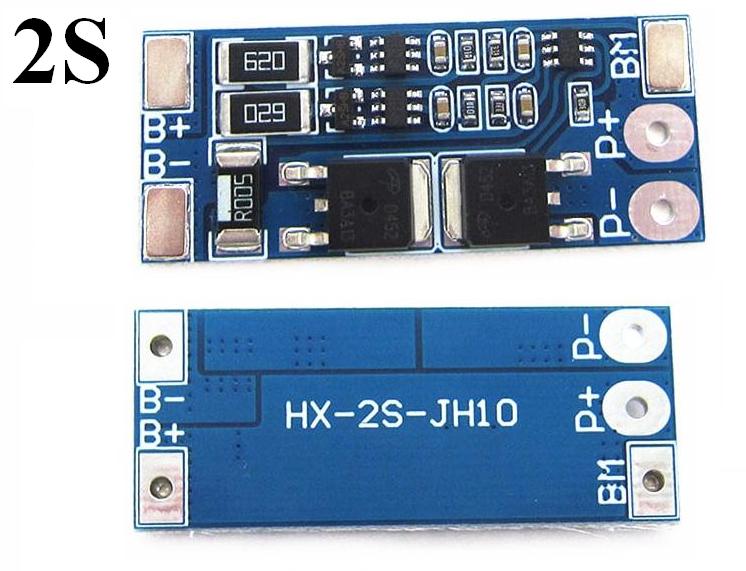

Lithium Ion Protection Board BMS HX-2S-JH10 Module

HX-2S-JH10 2S Lithium ion BMS Module

This module is perfect for making a 2S battery pack using 18650 Li-ion Batttery. HX-2S-JH10 is a 2 Series (2S) Lithium Ion Battery Managment System (BMS) Module with 8 Ampere continuous Li-ion protection board.

Specifications of 18650 Lithium Protection Board BMS HX-2S-JH10 Module

Model : HX-2S-JH10
Overcharge voltage range : 4.25-4.35 v ± 0.05v
Over discharge voltage range : 2.5-3.0v ± 0.05v
The maximum operating current : 8 Ampere Operating temperature: -40 to +50 ℃
Instantaneous upper limit current : 10 Ampere Storage conditions: -40 to +80 ℃
Quiescent current : less than 10uA
Effective life : more than 50,000 hours
Internal resistance : less than 300mΩ
Short circuit protection : to protect, disconnect the load delay self-recovery
Charging voltage : 8.4 - 9.0 volts balanced current is 58mA

Solder Joint Description:

B + battery positive;
B-battery negative;
MB is connected to battery 1 and battery 2 before the connection point;
P + connected to the charge / discharge positive terminal (charge terminal / discharge terminal shared);
P - then charge / discharge negative (charge / discharge common).

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
