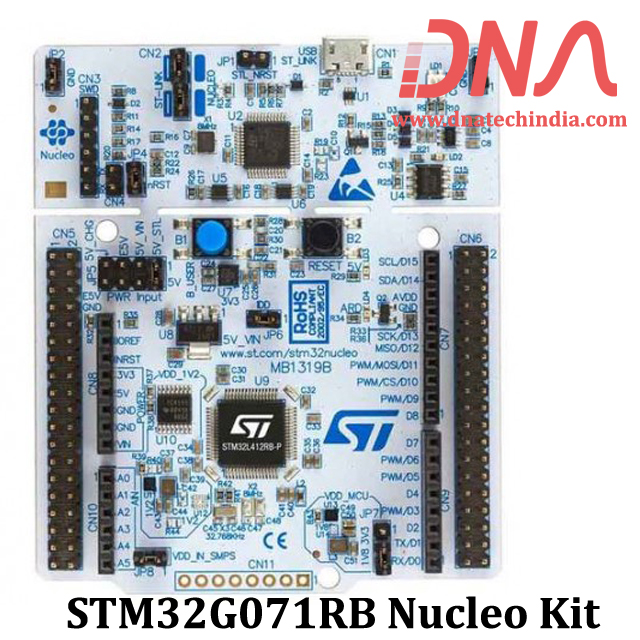

STM32G071RB Nucleo Evaluation Board

STM32 Nucleo-64 STM32G071 Evaluation Board

The STM32 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 micro-controller, which provide various combinations of performance, power consumption and features. do not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32G071 Nucleo Board come with the comprehensive free STM32 software libraries and examples that are available with the STM32 Cube package.

The Arduino™ Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

We have Various sizes of Devlopment Board. Check out our complete collection of Devlopment Board.

Features of STM32 STM32G071RB Nucleo board

• STM32 microcontroller in LQFP64 package

• 1 user LED shared with Arduino™

• 1 user and 1 reset push-buttons

• 32.768 kHz crystal oscillator

• Board connectors: Arduino™ Uno V3 expansion connectorST morpho extension pin headers for full access to all STM32 I/Os

• Flexible power-supply options: ST-LINK, USB VBUS or external sources

• On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port and debug port

• Comprehensive free software libraries and examples available with the STM32Cube MCU Package

• Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil® and GCC-based IDEs

Board-specific features

• External SMPS to generate Vcore logic supply

• 24 MHz HSE

• Board connectors:External SMPS experimentation dedicated connector Micro-AB or Mini-AB USB connector for the ST-LINKMIPI® debug connector

• Arm® Mbed Enabled™ compliant
