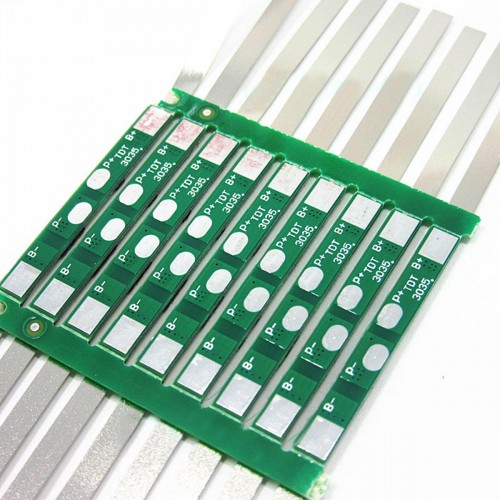

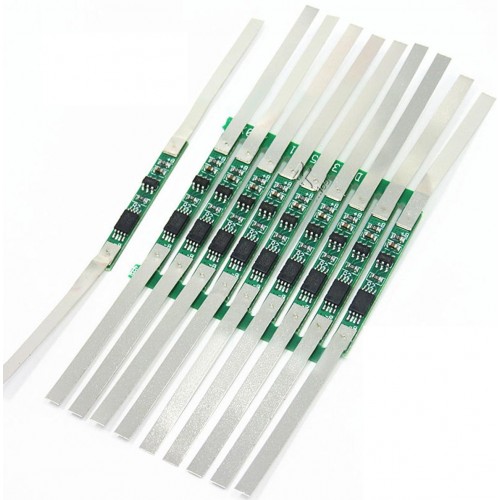

1S Li-ion 3 Amp For 3.7 Volt lithium Battery Cell BMS Module

Write a review | 1 reviews

Stock: 40

SKU: 1965 | DAB396

Rs. 18.88 (inc GST)
Rs.16.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

3A Protection Circuit Board For 3.7V 18650 Li-ion lithium Battery Cell 1S

1S Li-ion 3 Amp For 3.7 Volt lithium Battery Cell BMS Module

Specification Of 3A Protection Circuit Board For 3.7V 18650 Li-ion lithium Battery Cell 1S

Over charge release voltage : 4.23±0.05V
Over charging voltage range : 4.25±0.05V
Over discharge voltage range : 2.54±0.1V
Over current detection current : 1-3 A
Maximum operating current : 3A
Storage conditions : -40 -- +80 °
Quiescent current : less than 6uA
effective life : more than 50,000 hours
Internal resistance : less than 45mΩ
Short-circuit protection : can be protected, need to recharge recovery
Main function : over charging protection, over discharge protection, short circuit protection, over current protection function.

Features 3A Protection Circuit Board For 3.7V 18650 Li-ion lithium Battery Cell 1S

Main IC using original “precision” imported components.
Suitable for many requirements of high integration, low cost occasions.
Can meet the performance requirements of many aspects, to ensure, the absolute safety of the battery group.
Low current consumption.
Stable performance.
Fine workmanship and durable.

Characteristic 3A Protection Circuit Board For 3.7V 18650 Li-ion lithium Battery Cell 1S

Built-in high-precision voltage detection circuit;
Connect the charger terminal with high voltage device;
Built-in three over-current detection circuit (over-current 1, over-current 2, load short-circuit);
Low standby current consumption.

Connection description:

B+ connect to battery+
B- connect to battery-
P+ for battery output input+
P- for battery output input-
