Product Images are shown for illustrative purposes only and may differ from actual product.

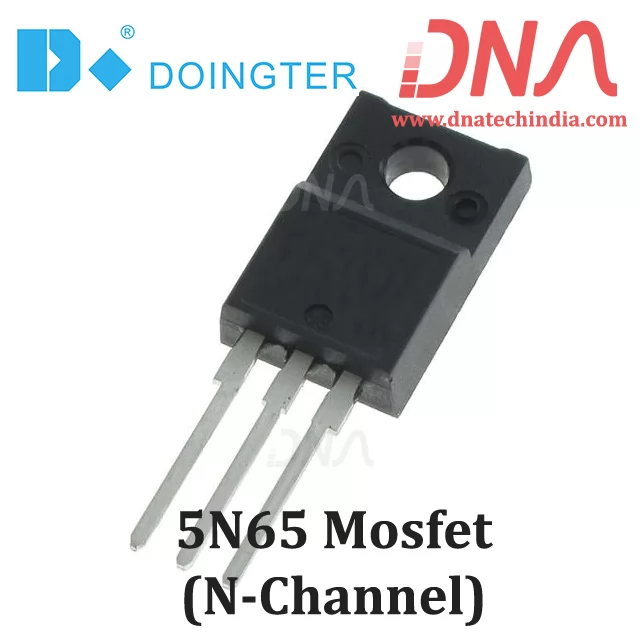

5N65 N-Channel MOSFET (Doingter)

Write a review | 1 reviews

Stock: 3

Brand: Doingter

SKU: 2829 | DAE497

Rs. 22.42 (inc GST)
Rs.19.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

5N65 N-Channel Power MOSFET

5N65 POWER MOSFET 5 Ampere, 650 Volts N-CHANNEL MOSFET

The 5N65 is a high voltage power MOSFET from Doingter with part number as DOPF 5N65 and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. 5N65 power MOSFET is usually used at high speed switching applications in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits.

We deal in retail as well as in bulk quantity. For bulk quantity feel free to contact us. DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

FEATURES of 5N65 MOSFET

RDS(ON) ≤2.4 Ω @ VGS = 10V
Ultra Low gate charge (typical 45nC)
Low reverse transfer capacitance (CRSS = typical 9 pF)
Fast switching capability
Avalanche energy specified
Improved dv/dt capability, high ruggedness

Rating of 5N65 N-Channel MOSFET

Part No: 5N65 MOSFET
Make: Doingter
Drain-Source Voltage: 650 Volts
Continuous Drain Current: 5 Ampere
Pulsed Drain Current: 20 Ampere
Power Dissipation: 36 Watt

Package Includes

1 x 5N65 N-Channel Power MOSFET

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
