  • 74HC4051 8 Channel Mux Analog Multiplexer Module

Product Images are shown for illustrative purposes only and may differ from actual product.

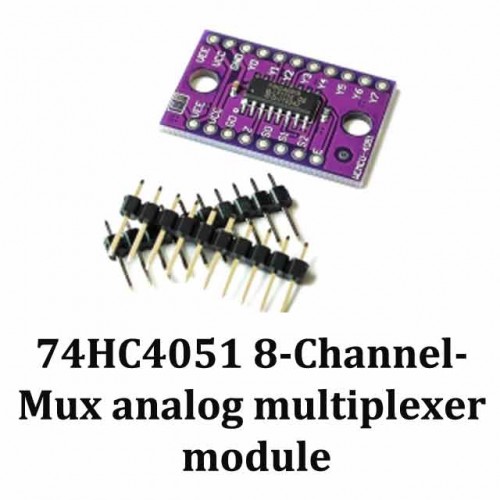

74HC4051 8 Channel Mux Analog Multiplexer Module

  • Stock: 9
  • SKU: 3267 | DAD351
  • Rs. 142.78 (inc GST)
    Rs.121.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

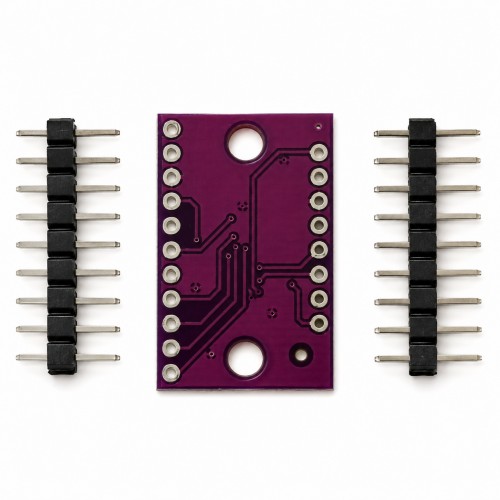

74HC4051 8-Channel-Mux Analog Multiplexer Module

74HC4051 8-Channel-Mux Analog Multiplexer Module

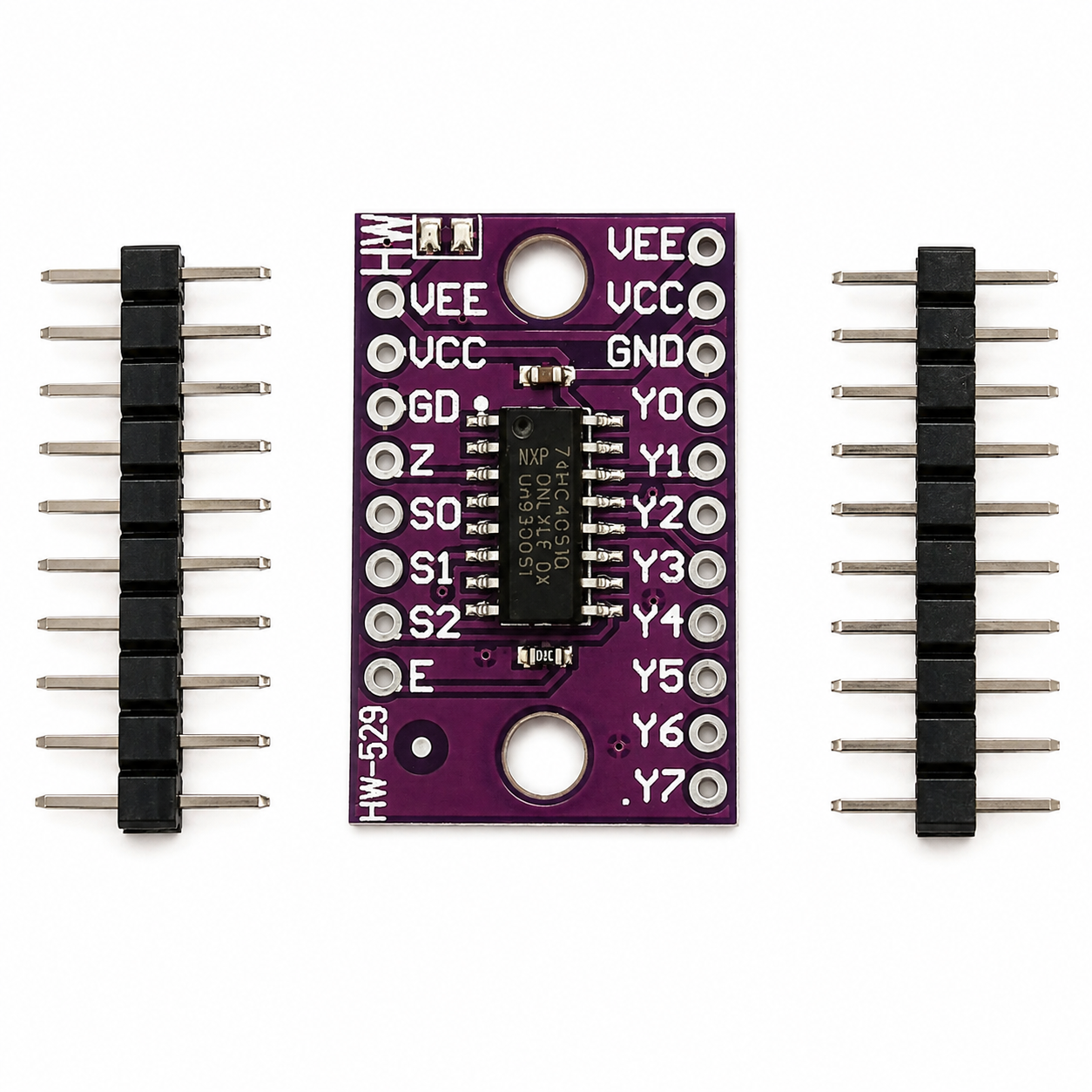

The 74HC4051, 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes.This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

DNA SOLUTIONS have Various sizes of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 74HC4051 8-Channel-Mux analog multiplexer module

  • Wide analog input voltage range from -5 V to +5 V
  • CMOS low power dissipation
  • High noise immunity
  • Complies with JEDEC standards

          -  JESD8C (2.7 V to 3.6 V)
          -  JESD7A (2.0 V to 6.0 V)

    • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
    • Low ON Resistance:

                - 80 Ω (typical) at VCC - VEE = 4.5 V

                - 70 Ω (typical) at VCC - VEE = 6.0 V
                - 60 Ω (typical) at VCC - VEE = 9.0 V

        • Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
        • Typical ‘break before make’ built-in
        • ESD Protection:

                   - HBM JESD22-A114F exceeds 2000 V

                   -  MM JESD22-A115-A exceeds 200 V
                   - CDM JESD22-C101E exceeds 1000 V

            • Multiple package options
            • Specified from -40 °C to +85 °C and -40 °C to +125 °C

            Applications of 74HC4051 8-Channel-Mux analog multiplexer module

            • Analog multiplexing and demultiplexing
            • Digital multiplexing and demultiplexing
            • Signal gating

            Related link

            74HC4051 8-Channel-Mux analog Multiplexer Module Datasheet.

            Package Includes

            1 x 74HC4051 8-Channel-Mux analog multiplexer module
