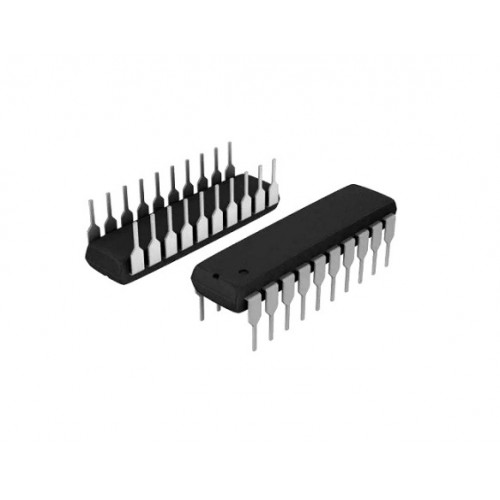

74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20

Write a review | 1 reviews

Stock: 9
Availability: InStock priceValidUntil: 2026-12-04
SKU: 8568 | DAA269

Rs. 26.43 (inc GST)
Rs.22.40 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20

74HC541 Octal Buffer/Line Driver with 3-state outputs, DIP-20 package, and clamp diodes for high voltage interfacing.

The 74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20 is designed for efficient signal processing in digital circuits. This device features eight non-inverting outputs that operate in a 3-state mode, allowing for versatile applications in data transmission. With its DIP-20 package, the 74HC541 is easy to integrate into various electronic projects. The built-in clamp diodes enhance its functionality, enabling safe interfacing with voltages exceeding VCC.

Engineers can utilize the 74HC541 for applications requiring multiple outputs without signal degradation. The two output enables (OE1 and OE2) allow users to control the output state effectively, making this IC suitable for a range of digital systems. Its robust design ensures reliable performance, making it a preferred choice in the field of electronics.

Consider the 74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20 for your next project. It provides flexibility and reliability in data handling, suitable for both hobbyists and professionals. This IC is perfect for applications such as data bus buffering, line driving, and signal routing.

Explore high-quality 7400 Series IC's with DNA. The DNA 74HC541 offers reliable performance in digital applications. Check other 7400 Series IC's that we have in stock.

At DNA, we cater to the needs of Indian electronics buyers. If you can't find specific parts, reach out to us. We can import them if needed. We support retail and bulk orders. Check our range of related items like Crystal, Microcontroller, Power Supply, Capacitor, Resistor, and Connectors. Contact Us.

Features of 74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20

Octal non-inverting buffer
3-state outputs
DIP-20 package
Built-in clamp diodes
High-impedance OFF-state

Specification of 74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20

Operating voltage: 2V to 6V
Input current: ±20mA
Output current: ±25mA
Propagation delay: 15ns
Power dissipation: 500mW

Applications of 74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20

Data bus buffering
Signal routing
Line driving
Digital circuit interfacing
High-speed data transmission

Package Includes

1 X 74HC541 Octal 3-State Buffer/Line Driver IC (74541 IC) DIP-20

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
