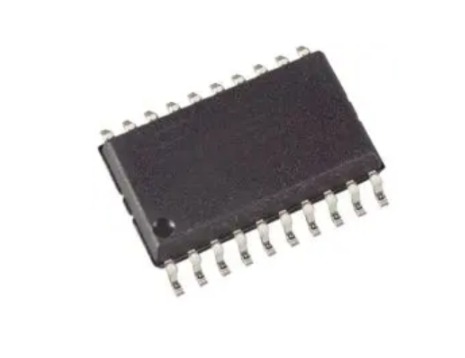

Product Images are shown for illustrative purposes only and may differ from actual product.

74LVC245AD OCTAL BUS TRANSCEIVER SMD IC

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-12-10
SKU: 8755 | DAI041

Rs. 292.05 (inc GST)
Rs.247.50 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

74LVC245AD Octal Bus Transceiver SMD IC

74LVC245AD SMD IC for bidirectional data transfer with high-speed operation and low power consumption.

The 74LVC245AD Octal Bus Transceiver SMD IC enables efficient bidirectional data transfer between buses. This IC is ideal for microprocessor and memory interfacing applications. With a three-state output, it allows multiple devices to share the same bus seamlessly. The 74LVC245AD operates at supply voltages from 4.5V to 5.5V and is designed for low power consumption, making it suitable for compact electronic designs in India.

In addition to its high-speed operation with typical propagation delays of 5-10ns, the 74LVC245AD Octal Bus Transceiver features CMOS/TTL compatible inputs, enhancing its versatility across various logic families. Its small surface-mount package allows for easy integration into tight spaces, making it a reliable choice for industrial automation and consumer electronics applications.

Choose the 74LVC245AD for your next project to ensure robust performance and efficiency in data transmission. Whether you are designing communication systems or memory address/data bus buffering, this transceiver IC delivers the quality you need.

Explore a wide range of 7400 Series IC's at DNA. The 74LVC245AD from a trusted manufacturer stands out in the 7400 Series IC's category. Discover other products that enhance your electronic designs. Check other 7400 Series IC's that we have in stock.

If you're searching for specific electronic components, reach out to us at DNA. We can import if needed and support both retail and bulk orders. Don't forget to check our selection of related items like Capacitors, Digital ICs, Super Capacitors, DC to DC Converter Modules, Transistors, and Power Supplies. Contact Us.

Features of 74LVC245AD Octal Bus Transceiver SMD IC

Octal Bus Transceiver: 8-bit bidirectional data transmission
Three-State Outputs: Allows multiple devices to share the same bus
High-Speed Operation: Fast propagation delay for improved data transfer
Low Power Consumption: Designed for low power applications
CMOS/TTL Compatible Inputs: Works with various logic families
SMD Package: Available in a small surface-mount package for compact designs

Specification of 74LVC245AD Octal Bus Transceiver SMD IC

Supply Voltage: 4.5V to 5.5V
Input Voltage: 0V to Vcc
High-Level Output Voltage: Typically Vcc - 0.1V
Low-Level Output Voltage: Typically 0.1V
Output Drive Current: ±24mA
Propagation Delay: Typically 5-10ns

Applications of 74LVC245AD Octal Bus Transceiver SMD IC

Microprocessor & Microcontroller Bus Interfaces
Memory Address/Data Bus Buffering
Communication Systems
Industrial Automation
Consumer Electronics

Package Includes

1 X 74LVC245AD Octal Bus Transceiver SMD IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
