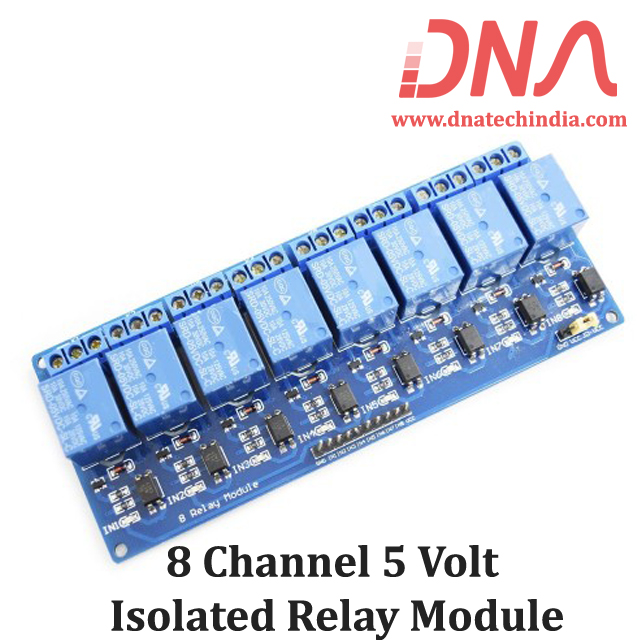

8-Channel 5 Volt Isolated Relay Module

Write a review | 0 reviews

Stock: 6

SKU: 1305 | DAB291

Rs. 355.18 (inc GST)
Rs.301.00 + GST

Qty :
Qty

Quantity Pricing (inc GST)

3 + 348.08

7 + 340.97

10 + 333.87

20 + 326.77

Electronic Component of the Week (ELCOW) Arduino UNO 370/- Rs Only

GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Description

8-Channel 5 Volt Isolated Relay Module

These are optically isolated relay modules having 5 Volt cube Relays.

The relays are driven by a Opto-coupler which provides isolation between your Micro-controller, Arduino or Raspberry Pi & the relay thus making this module better that the modules having transistor or ULN2003 IC as drivers.

This is a Eight channel Relay Module with output relay contacts of 10 ampere at 250 volts. You can use it easily with any Micro-controller, Arduino or Single Board Computers (SBC) like Raspberry Pi and Beagle bone. You can even use this module with digital IC's like LM555 of HT12D.

Features of 8 channel 5 volt Relay Board

This relay module is 5V active low.
It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
It is also able to control various appliances and other equipments with large current.
Relay output maximum contact is AC250V 10A and DC30V 10A.
Standard interface can be directly connected with microcontrollers.
Red working status indicator lights are conducive to the safe use.
Widely used for all MCU control, industrial sector, PLC control, smart home control.
Input port IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 low signal level effectively.
VCC, GND : Input power.
JD - VCC : Relay power input port,relay can power alone.
Working voltage : 5V
Module weight : about 112g
package weight : about 150g
module size : about 1.7cm X 5.5cm X 13.7cm(height * width * long)

Applications of Relay Board

Support all single-chip microcomputer control.
Industrial fields;
PLC control;
Household intelligent control
