Product Images are shown for illustrative purposes only and may differ from actual product.

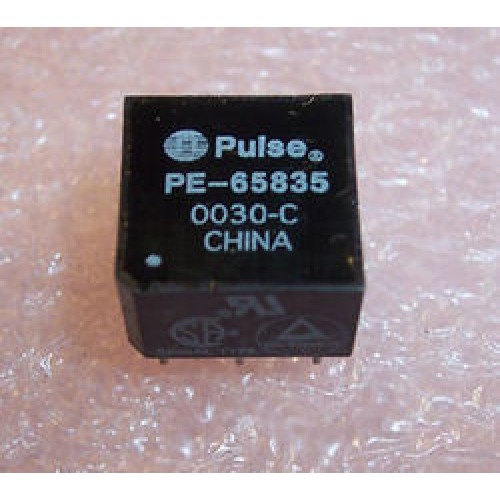

PE65835 Pulse Transformer


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-06

  • SKU: 887 | DAB570

Availability: NotInStock priceValidUntil: 2026-03-06

  • Rs. 105.02 (inc GST)
    Rs.89.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

PE65835 Pulse Transformer

Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.

What is Pulse Transformer?

Pulse transformer for some applications also gate transformer or gate drive transformer or trigger transformer or wideband transformer or signal transformer is a type of transformer optimised and designed for transmission of voltage pulses between its windings and into the load. Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.

Features of PE65835

  • RoHS : No

  • Termination Style : Through Hole

  • Primary Impedance : 0.7 Ohms

  • Secondary Impedance : 1.1 Ohms

  • Isolation Voltage : 1.5 kV

  • Operating Temperature Range : 0 C to + 70 C

  • Number of Channels : Single

  • Product : LAN

  • Type : Module

  • Application : T1/CEPT/ISDN-Pri

  • Length : 14.22 mm

  • Width : 14.22 mm

  • Height : 10.2 mm

  • Brand : Pulse

  • Primary Resistance : 0.7 Ohms

  • Qualification : Commercial

  • Secondary Resistance : 1.1 Ohms

  • Shielding : Unshielded

Application of Pulse Transformer

Pulse transformers can be used for signal transmission, low-power control circuits, camera flashes, radar systems, high-power switched-mode power supplies and other fields where pulsed form of relatively high voltage along with isolation is required.

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
