Product Images are shown for illustrative purposes only and may differ from actual product.
Vending Machine Motor
- Stock: Out Of Stock
- SKU: 1704 | DAC846
-
Rs. 442.50 (inc GST)
Rs.375.00 + GSTQty :
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

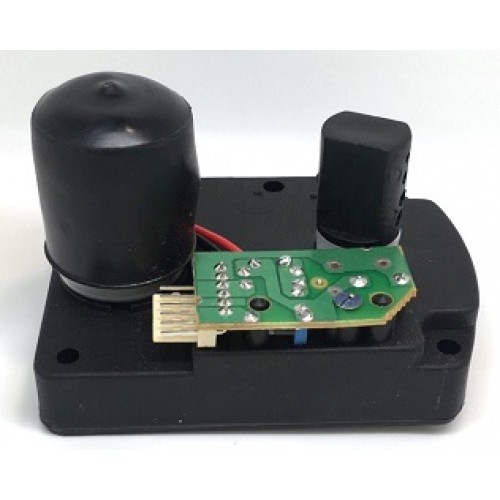

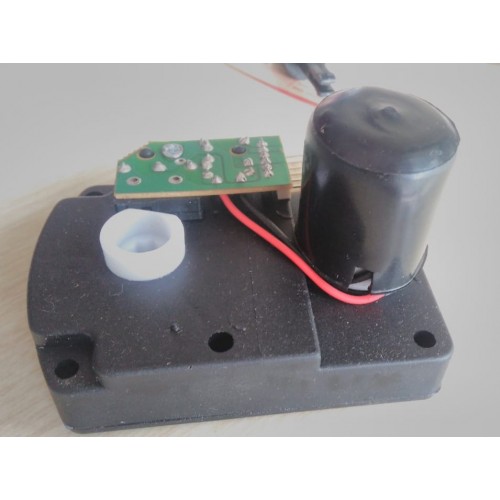

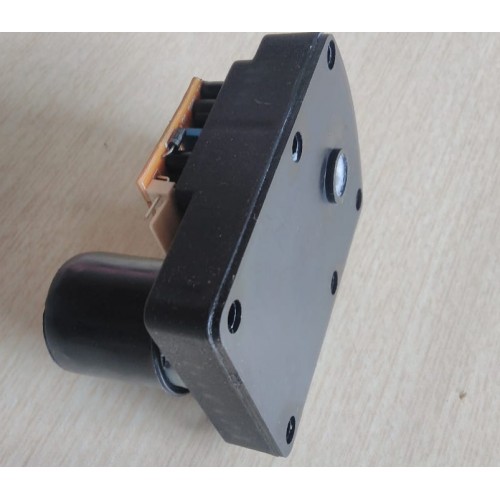

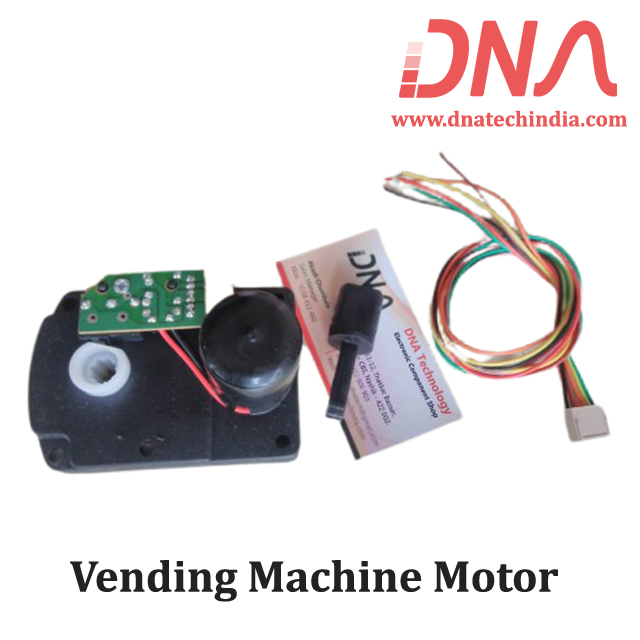

Vending Machine Motor
12 Volt Vending Machine Motor DNA-VND-350/12
This is a Industrial Grade high torque 12 volt DC geared Motor perfect for making your own automatic Vending Machine. You can easily control this motor through a relay. The main advantage of using this Vending Motor is it provides a feedback after one complete rotation. This way you easily count the number of turns required to dispense your product.
We have Various sizes of Robotics.Check out our complete collection of Robotics
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specification of DNA-VND-350/12 Vending Motor
- Voltage Range : 9.00 volt to 15.00 Volt DC
- Typical Range : 12.00 Volt DC
- Gear Reduction : 1: 427
- Direction of Rotation : CCW from motor side
- No Load Speed : 22 RPM
- No Load Current : 0.220 Amp
- No Load Power : 2.64 Watt
- Max Eff. Speed : 19 RPM
- Max Eff. Current : 0.620 Amp
- Max Eff. Torque : 17.00 Kg-cm
- Max Eff. Power : 3.30 Watt
- Max Power : 6.20 Watt
- Max Load Speed : 12 RPM
- Max Load Current : 1.41 Amp
- Max Torque : 51.10 Kg-cm
PINOUT
- Black : Ground (GND)
- Brown : Common for Feedback
- RED : 12 Volt DC
- Orange : 12 Volt DC
- Yellow : Not Connected (NC)
- Green : Normally Open (NO) for Feedback
