Product Images are shown for illustrative purposes only and may differ from actual product.

DHT12 Sensor

  • Stock: Out Of Stock
  • SKU: 2093 | DAA508

Availability: NotInStock priceValidUntil: 2025-10-13

  • Rs. 141.60 (inc GST)
    Rs.120.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

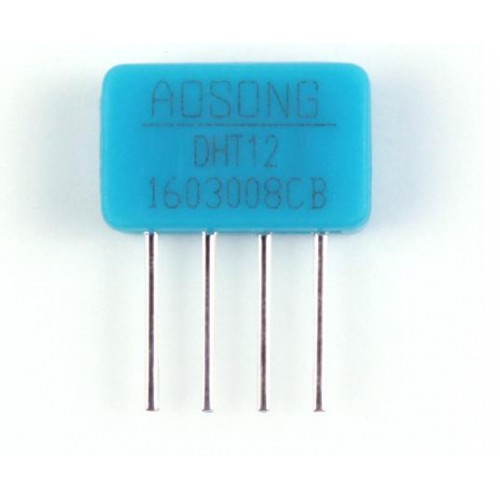

DHT12 Sensor

Temperature and Humidity sensor with I2C interface

DHT12 Temperature and Humidity Sensor is an upgraded version of DHT 11 Sensor and is more precise. DHT12 Sensor has both single bus communication and I2C communication as well. When used in single bus communication it is compatible to DHT11.

Features of DHT12 Sensor

  • Super compact size
  • Super low power consumption
  • Super low voltage operation
  • Standard I2C and 1-wire interface.
  • Semi conductor technology
  • Sensing range
                           Temperature : -20 ~ +60 C
                           Humidity : 20-95 RH
  • Humidity :
                          Resolution : 0.1%RH
                          Repeat : -+ 1%RH
                          Precision 25C @ -+5RH
  • Temperature :
                          Resolution : 0.1C
                          Repeat : -+0.2C
                          Precision : 25C @ -+0.5C
  • Power : DC 2.7-5.5V
  • Normal current 1mA
  • Standby current 60uA
  • Sample cycle : > 2 seconds
  • Pin interface : 1. VDD 2. SDA 3. GND 4. SCL (connect to GND when use as 1-wire)
