YDLIDAR X2 Lidar 360 Degree Laser Range Scanner (8m)

YDLIDAR X2 Lidar 360 Degree Laser Range Scanner (8m)

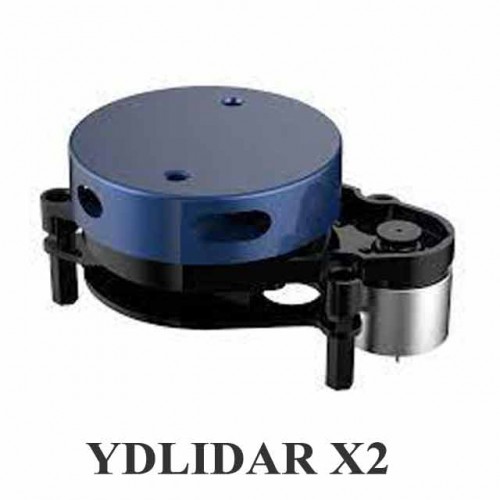

The YDLIDAR X2 Lidar is a 360-degree two-dimensional distance measurement product. This product is based on the principle of triangulation, and is equipped with relevant optics, electricity, and algorithm design to realize high-frequency and high-precision distance measurement. While the distance is measured, 360 degrees of scanning distance measurement is achieved by continuously obtaining the angle information through the 360 degree rotation of the motor. The X2 uses a 3.3V level serial port (UART) for communication. Users can connect the external system and the product through the physical interface and obtain the real-time scanned point cloud data, device information as well as device status according to the communication protocol of the system.
The X2 has its own motor driver with motor speed control function. The peripheral can control the X2 motor by inputting the control signal through the M_SCTP pin in the interface. M_SCTP is the motor speed control signal, which can be adjusted by voltage or PWM wave. The X2 uses an infrared point pulsed laser that meets FDA Class I laser safety standards. The laser and optical lens complete the transmission and reception of the laser signal to achieve high-frequency ranging.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

  • High Accuracy, Low power consumption
  • Scanning Frequency:7Hz
  • Ranging Frequency: 3000Hz
  • Distance Range: 0.1-8m based on the reflectivity of objects.
  • 360-degree two-dimensional rangefinder: The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging
  • Adjustable motor speed(7Hz recommend)
  • UART Communication at 3.3v
  • Laser power meets Class I laser safety standards

Specifications

  • Robot navigation and obstacle avoidance
  • Robot ROS teaching and research
  • Regional security
  • Environmental scanning
  • 3D reconstruction Commercial robot /Robot vacuum cleaner

Datasheet Link

YDLIDAR X2 Datasheet

Package Includes

1 x YDLIDAR X2 Lidar 360 Degree Laser Range Scanner (8m)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
