Product Images are shown for illustrative purposes only and may differ from actual product.

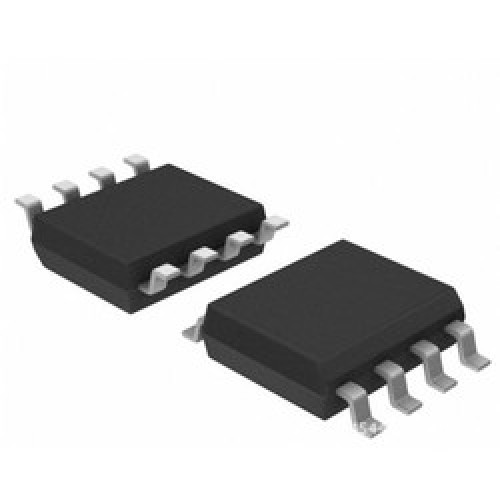

XL3001 E1 Buck LED Constant Current Driver IC


Write a review | 1 reviews

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-11-12

  • Brand: XL Semi
  • SKU: 3677 | DAF665

Availability: InStock priceValidUntil: 2026-11-12

  • Rs. 33.04 (inc GST)
    Rs.28.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL3001E1 Buck LED Constant Current Driver IC

XL3001E1 Buck LED Driver IC for 3A output, 220KHz frequency, 40V max voltage.

The XL3001E1 Buck LED Constant Current Driver IC is designed to drive LED applications with precision. It operates at a fixed frequency of 220KHz, ensuring high efficiency and low ripple. This device supports an input voltage range of 8V to 40V, making it versatile for various lighting projects. The internal features include overcurrent protection and thermal shutdown, enhancing reliability in operation.

With a capability of delivering a constant output current of 3A, the XL3001E1 is ideal for general-purpose LED lighting and monitor backlighting. Its built-in current limit and output short protection functions ensure safety during use. The XL3001E1 Buck LED Constant Current Driver IC is a compact solution, requiring minimal external components, making it user-friendly for engineers and hobbyists alike.

Explore the potential of the XL3001E1 in your LED projects. Enjoy excellent line and load regulation, and the simplicity of integrating this driver into your designs. Choose the DNA XL3001E1 for reliable and efficient LED performance.

Discover the reliability of DNA Voltage Regulators. Our XL3001E1 Buck LED Constant Current Driver IC delivers efficient performance. Explore our range of Voltage Regulators for your electronic projects. Check other Voltage Regulators that we have in stock.

At **DNA**, we cater to all your electronic needs. If you cannot find specific parts, reach out to us. We can import what you need and support both retail and bulk orders. Check our related items like Microcontrollers, Sensor Modules, and Development Boards. Contact Us.

Features of XL3001E1 Buck LED Constant Current Driver IC

  • Wide input voltage range
  • 3A constant output current
  • Built-in thermal shutdown function
  • Excellent line and load regulation
  • Fixed 220KHz switching frequency

Specification of XL3001E1 Buck LED Constant Current Driver IC

  • Input Voltage Range: 8V to 40V
  • Output Current Sense Voltage: 0.21V
  • Maximum Duty Cycle: 100%
  • Minimum Drop Out Voltage: 0.3V

Applications of XL3001E1 Buck LED Constant Current Driver IC

  • Buck constant current driver
  • General purpose LED lighting
  • Monitor LED backlighting

Related Links for XL3001E1 Buck LED Constant Current Driver IC

Package Includes

  • 1 X XL3001E1 Buck LED Constant Current Driver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited

Reviews (1)

Write a review

Note: HTML is not translated!
    Bad           Good
CAPTCHA verification code

Frequently Asked Questions

Do you provide a GST bills?
Yes we provide GST Bill by the name of DNA Solutions. You will receive a GST compliant invoice for your records. You can take GST benefit.
What is your return / replacement policy?
Returns/replacements depend on the item type and condition. If there’s an issue, contact us with photos/videos and we’ll guide you as per policy.
Where are you located / where do you ship from?
We’re based in Nashik, Maharashtra. All orders are dispatched from Nashik.
I forgot to add GST number at time of placing order, but I need GST Invoice in my firms name?
You can contact us via Contact us page and send your order details and GST number we will send you updated Invoice soft copy.
What details should I share for sourcing a non-listed component?
Send these details for fastest sourcing: - Exact part number - Manufacturer (if known) - Package type - Product image (if possible) - Required quantity - Delivery address + PIN code - Timeline/urgency
If I order the same parts again later, will they match?
We try to maintain consistency, but supply can change. If matching lot/brand matters, tell us in advance and we’ll advise what’s available.
