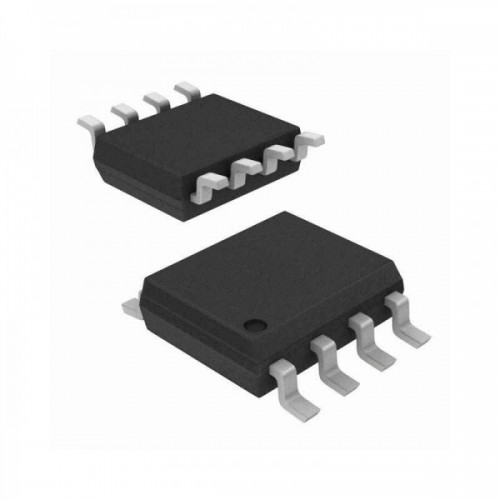

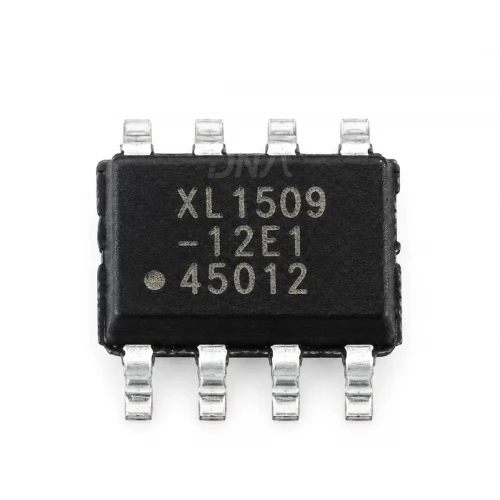

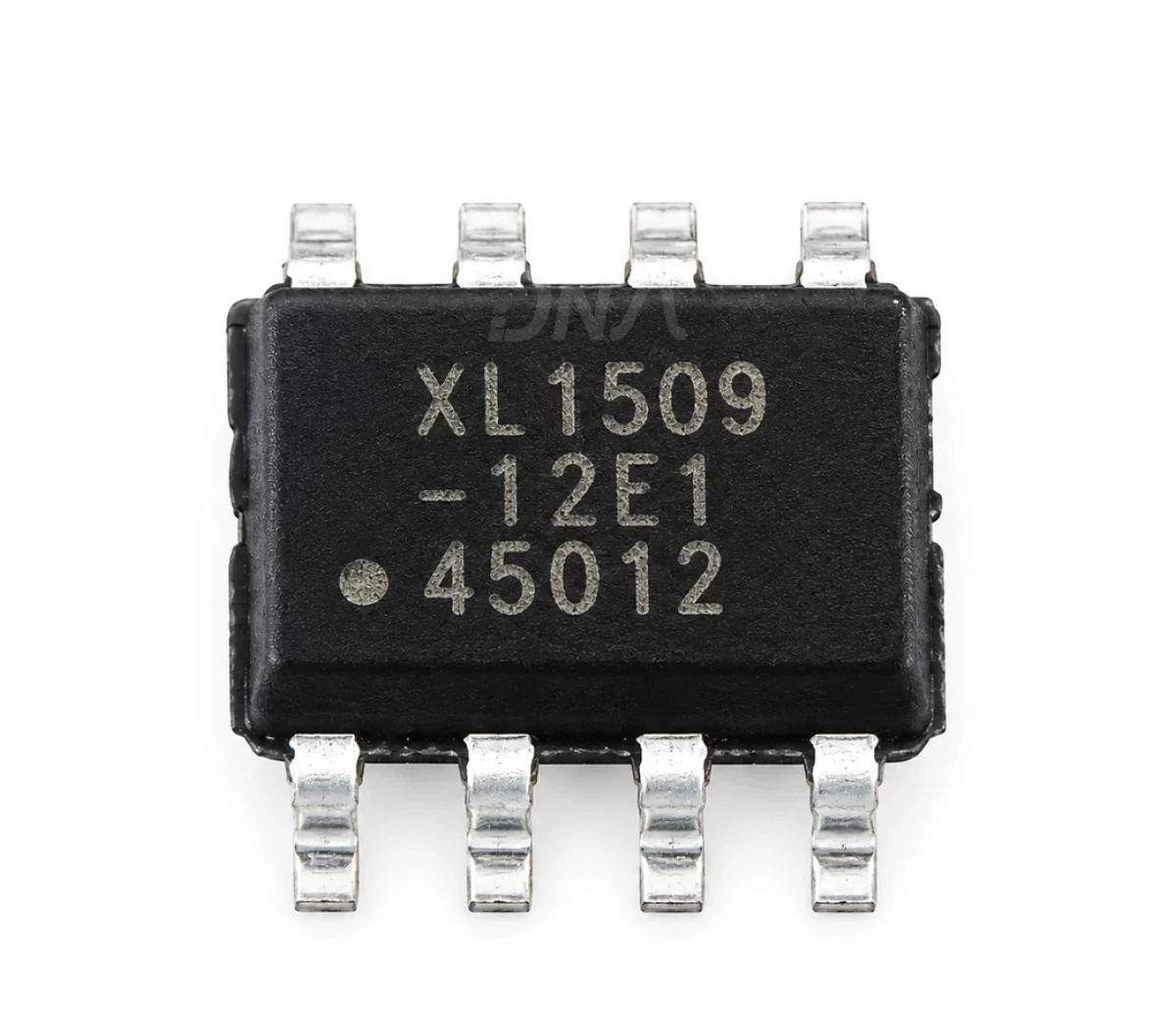

XL1509-12.0 E1 Buck DC to DC Converter IC (SOP8L Package)


Write a review | 1 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-10-08

  • Brand: XL Semi
  • SKU: 3658 | DAF398

Availability: InStock priceValidUntil: 2026-10-08

  • Rs. 25.96 (inc GST)
    Rs.22.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL1509 Buck DC to DC Converter IC - 12V Output

XL1509-12.0 E1 Buck Converter IC; Fixed 12V output; 2A load capacity; High efficiency and low ripple.

The XL1509 Buck DC to DC Converter IC provides a reliable fixed 12V output. It operates at a fixed frequency of 150KHz, allowing it to efficiently drive loads up to 2A while maintaining low ripple and excellent line and load regulation. This IC simplifies design with its internal frequency compensation and requires minimal external components, making it suitable for various applications.

With a wide input voltage range of 4.5V to 40V, the XL1509 Buck DC to DC Converter IC is adaptable for many electronic devices. It features built-in protection functions including thermal shutdown and current limiting, ensuring safety during operation. Ideal for digital photo frames, LCD monitors, and telecom equipment, this component meets the demands of modern electronics.

Explore the capabilities of the XL1509 Buck DC to DC Converter IC for your projects. Its fixed 12V output and efficient design make it a valuable addition to your electronic components toolkit. Check out our range of DC to DC converters for more options.

At DNA, we offer top-quality products like the XL1509 Buck DC to DC Converter IC from trusted manufacturers. Explore our Voltage Regulators category for more reliable solutions to meet your electronic needs. Check other Voltage Regulators that we have in stock.

If you are searching for specific electronic components, DNA can assist you. We can import items not in stock and support both retail and bulk orders. Consider related products like Programmers, Diodes, HMI Displays, Humidity & Temperature Sensors, Hongfa Relays, and MOSFETs. Contact Us.

Features of XL1509 Buck DC to DC Converter IC - 12V Output

  • Fixed 12V output
  • Wide input voltage range 4.5V to 40V
  • Built-in thermal shutdown function
  • Current limiting protection
  • High efficiency
  • Low ripple output
  • 2A load capacity
  • Fixed frequency operation at 150KHz.

Specification of XL1509 Buck DC to DC Converter IC - 12V Output

  • Input Voltage: 4.5V to 40V
  • Output Voltage: 12V
  • Switching Frequency: 150KHz
  • Output Current: 2A
  • Package Type: SOP8L
  • Maximum Duty Cycle: 100%
  • Minimum Drop Out: 1.5V.

Applications of XL1509 Buck DC to DC Converter IC - 12V Output

  • Digital Photo Frames
  • LCD Monitors
  • Set-top Boxes
  • ADSL Modems
  • Telecom Equipment.

Related Links for XL1509 Buck DC to DC Converter IC - 12V Output

    XL1509-12.0 E1 IC Datasheet: N/A

Package Includes

  • 1 X XL1509- 12.0 E1 Buck DC to DC Converter IC (SOP8L Package)
