  • Meanwell SMPS LRS-75-12

Product Images are shown for illustrative purposes only and may differ from actual product.

Meanwell SMPS LRS-75-12

  • Stock: 1
  • Brand: Meanwell
  • SKU: 2495 | DAC659
  • Rs. 1,004.18 (inc GST)
    Rs.851.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

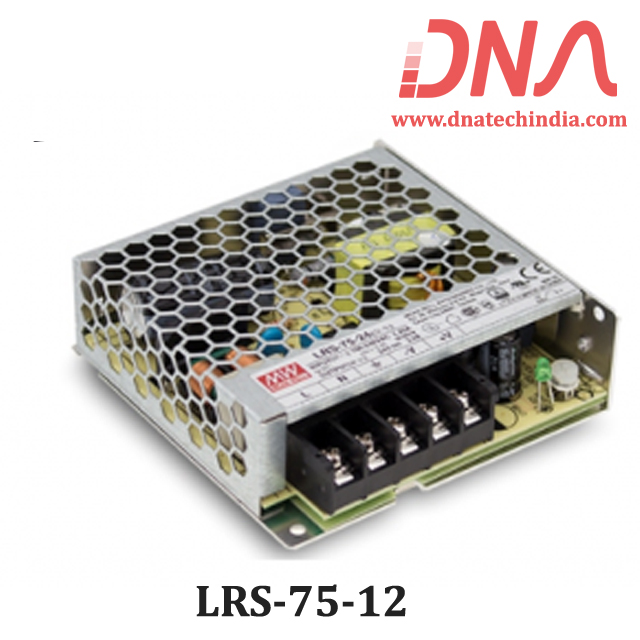

Meanwell LRS-75-12 Power Supply

12 Volts, 75 Watt Single Output Switching Power Supply from Meanwell

LRS-75 Series is a 75 Watt Single-Output Encolsed type power supply with 30mm of profile, Design. Adopting the Full Range 85~264 VAC input.The entire Series Provides an Output voltage Line of 5V, 12V, 15V, 24V, 36V And 48V

LRS-75-12 is a high quality Industrial Grade SMPS fom Meanwell. LRS75-12 SMPS is a 75 watt SMPS and gives 12 volts output. Meanwell LRS-75 -12 switching power supply comes in mesh type casing and is very easy to mount.

Check out our Complete variety of Meanwell SMPS that we have.

Features of LRS-75-12 Meanwell SMPS

  • Protections : Short circuit / Overload / Over voltage / Over temperature
  • Universal AC input / Full range
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105  long life electrolytic capacitors
  • Withstand 300 VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • Specification for LRS75-12 Meanwell Power Supply

    OUTPUT

    Wattage

    Voltage

    Max Current

    72  Watt

    12 Volts

    6 Ampere

    INPUT

    Efficiency

    Frequency Range:

    89 %

    47 ~ 63Hz

    PROTECTION

    Overloaded

    Over Volt

    110 ~ 150% Rated Output Power.

    13.8 ~ 16.2 Volts

    ENVIRONMENT

    Working Temp:

    Working Humidity:

    Storage Temp:

    Vibration:

    -30 ~ +70°C

    20 ~ 90% RH non-condensing

    -40 ~ +85, 10 ~ 95% RH

    10 ~ 500Hz, 5G 10min./1cycle, period for  60min. each along X, Y, Z axes
