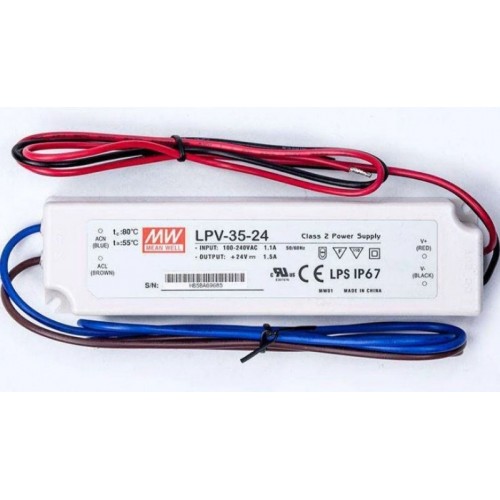

Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-15

  • Brand: Meanwell
  • SKU: 7571 | DAD230

Availability: NotInStock priceValidUntil: 2026-12-15

  • Rs. 1,274.40 (inc GST)
    Rs.1,080.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply

LPV-35-24 single-output AC-DC power supply with 24 V, 1.5 A output, 36 W rated power and IP67-level encapsulation.

The Mean Well LPV-35-24 is a single-output AC-DC switching power supply for equipment that needs a constant 24 V DC supply. It provides up to 1.5 A and has a rated output power of 36 W. Its wide AC and DC input range supports different power systems, while its 24 V constant-voltage output suits compatible loads.
The fully encapsulated case has IP67-level protection, and free-air convection cools the unit without a fan. Overload protection uses hiccup mode and recovers after the fault is removed. Over-voltage protection shuts down the output until power is cycled. For its stated IP67 use, install indoors or outdoors away from direct sunlight, and do not immerse the unit for more than 30 minutes.
Use this AC-DC power supply for LED lighting and moving signs where a constant-voltage supply is needed.
DNA is an Indian electronics retailer offering Mean Well products for power supply needs. Explore our Meanwell SMPS range to find options for supported lighting and sign applications. Check other Meanwell SMPS that we have in stock
Indian electronics buyers can contact DNA if they cannot find a part. Ask us about import support and retail or bulk orders. We can also help you find items such as capacitors, sensor modules, displays, relays, crystals and LCDs. Contact Us

Features of Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply

  • Constant-voltage design for compatible DC loads
  • Fully encapsulated construction
  • Hiccup-mode overload protection recovers after fault removal
  • Over-voltage protection shuts down the output until power is cycled
  • Free-air convection cooling

Specifications of Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply

  • DC output voltage: 24 V
  • Rated output current: 1.5 A
  • Rated output power: 36 W
  • Input voltage range: 90–264 VAC or 127–370 VDC
  • Input frequency range: 47–63 Hz
  • Output voltage tolerance: ±5.0%, including setup tolerance, line regulation and load regulation
  • Ripple and noise: 150 mVp-p maximum, measured at 20 MHz bandwidth with a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors
  • Operating temperature: −30 to +75 °C, with load derating based on the derating curve

Applications of Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply

  • LED lighting
  • Moving signs

Related Links for Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply

Package Includes

  • 1 X Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
