Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply

Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply

Mean Well LRS-100-36 enclosed AC-DC power supply with 36 V output, 2.8 A rated current and 85–264 VAC or 120–373 VDC input.

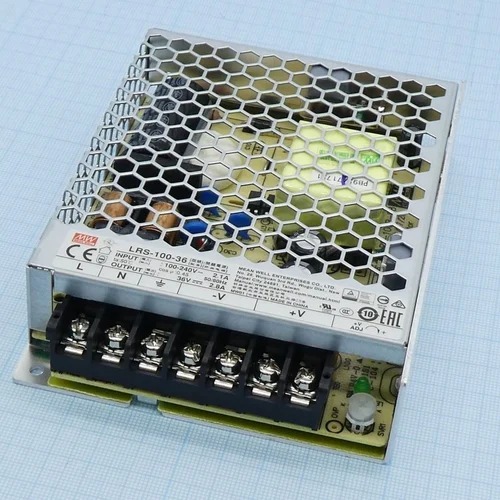

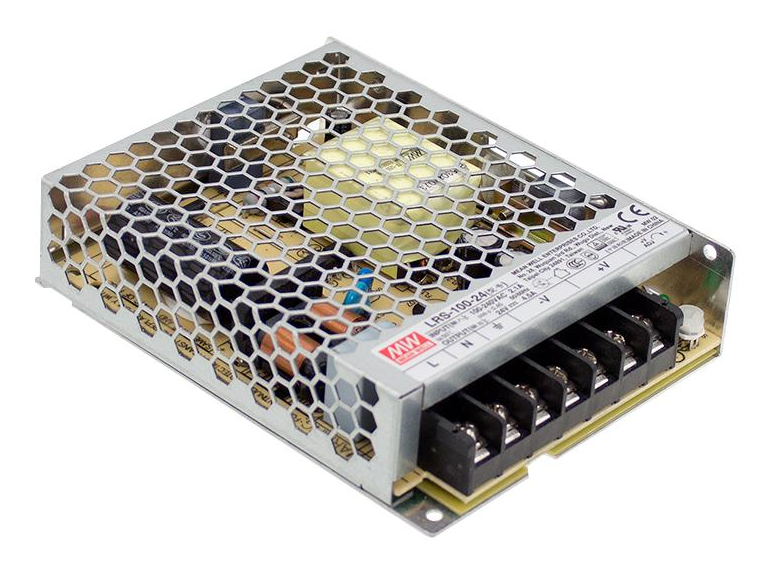

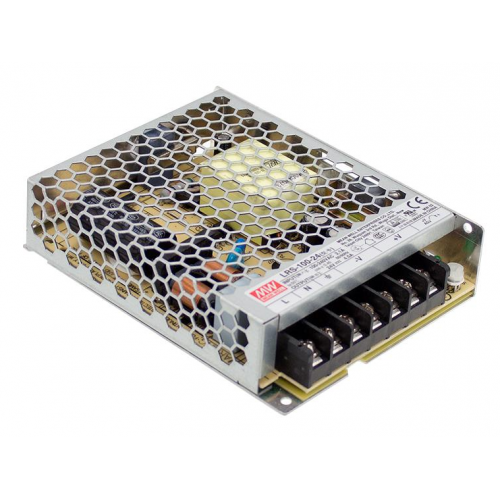

The Mean Well LRS-100-36 is an enclosed AC-DC switching power supply that converts AC or DC input into a regulated 36 V DC output. It delivers up to 100.8 W for equipment that needs a steady supply rail.

Its metal-mesh case suits enclosed installations, while free-air convection cooling removes heat without a fan. Short-circuit, overload and overvoltage protection help limit damage during fault conditions. A power-on LED gives a clear status check.

This 36 V power supply suits industrial automation machinery, control systems and electronic instruments. Its single regulated output supports equipment built around a 36 V DC rail.

DNA stocks Mean Well power supplies for electronics buyers looking for dependable power conversion. Explore our Meanwell SMPS range to find options for equipment and system builds. Check other Meanwell SMPS that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. We can also help you source related items such as MOSFETs, power supplies, capacitors, crystals and development boards. Contact Us

Features of Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply

• Enclosed metal-mesh case
• Fanless cooling by free-air convection
• Short-circuit, overload and overvoltage protection
• Power-on LED indicator
• Wide-range AC or DC input

Specifications of Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply

• Rated output: 36 V DC, 2.8 A, 100.8 W
• Input voltage range: 85–264 VAC or 120–373 VDC
• Output voltage adjustment range: 32.4–39.6 V
• Output voltage tolerance: ±1.0% (includes setup, line and load regulation)
• Efficiency: 90.5% typical
• Operating temperature: −30 to +70 °C (load derating applies)
• Ripple and noise: 200 mVp-p maximum (20 MHz bandwidth)
• Dimensions: 129 × 97 × 30 mm (L × W × H)

Applications of Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply

• Industrial automation machinery
• Industrial control systems
• Electronic instruments and equipment
• Household appliances

Related Links for Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply

• Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well LRS-100-36 100.8 W Enclosed Single-Output AC-DC Power Supply
