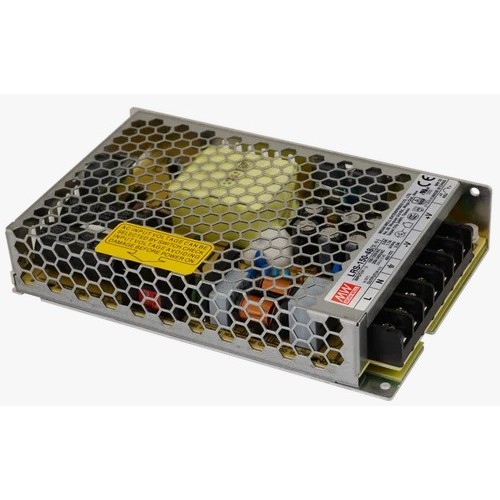

Mean Well LRS-150-48 150 W Single-Output Enclosed Switching Power Supply

LRS-150-48 is a 48 V DC, 3.3 A enclosed AC-DC power supply with 158.4 W output, switch-selectable AC input and fanless cooling.

The Mean Well LRS-150-48 is an enclosed AC-DC switching power supply that converts AC input to a regulated 48 V DC output. It provides up to 158.4 W for equipment that needs a 48 V DC power supply in a compact enclosure.
Its switch-selectable AC input range supports different input setups. Fanless convection cooling uses free air to remove heat, while built-in short-circuit, overload, overvoltage and overtemperature protection helps guard the supply and connected system. The low-profile 1U design also helps when equipment space is limited.
Use this enclosed switching power supply in industrial automation machinery, control systems, mechanical and electrical equipment, or electronic instruments. Its single output gives designers a direct power source for systems built around a 48 V DC rail.
DNA stocks Mean Well power supplies for engineers, repair teams and electronics buyers. Explore our Meanwell SMPS range to find a suitable unit for your project or replacement needs. Check other Meanwell SMPS that we have in stock
Buying electronic components in India? Contact DNA if you cannot find the part you need. We support imports and retail or bulk orders, and can help you find related LCD, crystal, power supply, diode, humidity and temperature sensor, or microcontroller products. Contact Us

Features of Mean Well LRS-150-48 150 W Single-Output Enclosed Switching Power Supply

  • Switch-selectable AC input range
  • Fanless cooling through free-air convection
  • Built-in short-circuit, overload, overvoltage and overtemperature protection
  • Low-profile 1U design
  • LED power-on indicator
  • Low no-load power consumption

Specifications of Mean Well LRS-150-48 150 W Single-Output Enclosed Switching Power Supply

  • Rated output voltage: 48 V DC
  • Rated output current: 3.3 A
  • Rated output power: 158.4 W
  • Input voltage range: 85–132 VAC or 170–264 VAC, selected by switch
  • Input frequency: 47–63 Hz
  • Efficiency: 90% typical
  • Operating temperature: -30 to +70 °C, refer to derating curve
  • Dimensions: 159 × 97 × 30 mm (L × W × H)

Applications of Mean Well LRS-150-48 150 W Single-Output Enclosed Switching Power Supply

  • Industrial automation machinery
  • Industrial control systems
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus

Related Links for Mean Well LRS-150-48 150 W Single-Output Enclosed Switching Power Supply

Package Includes

  • 1 X Mean Well LRS-150-48 150 W Single-Output Enclosed Switching Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
