Meanwell MDR-60-24 DIN Rail AC - DC Power Supply

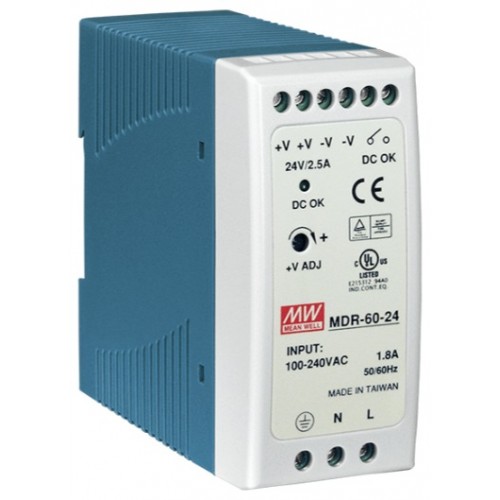

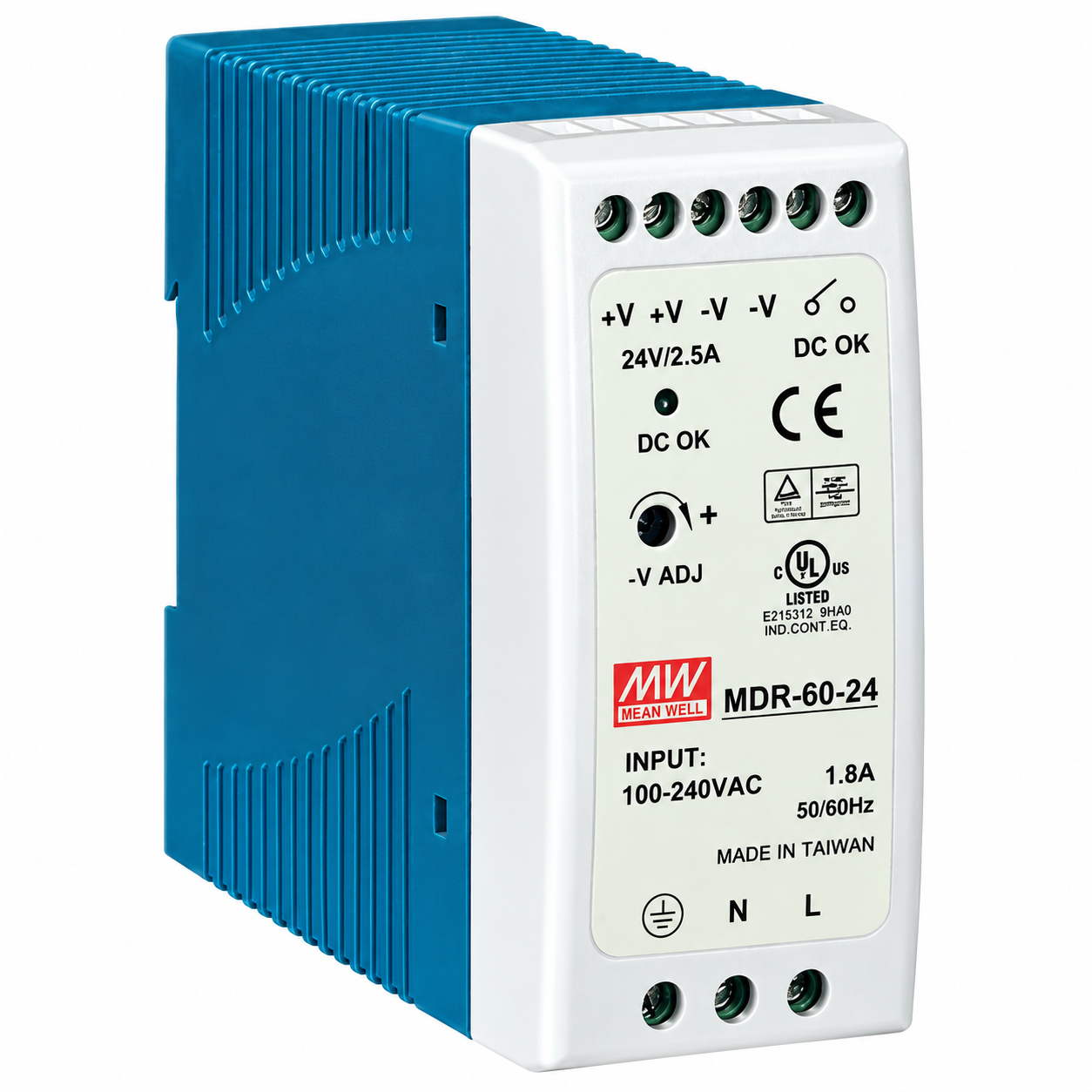

Meanwell MDR-60-24 60 Watt DIN Rail Power Supply

MDR-60-24: 60W 24V DIN Rail Power Supply with 2.5A output, high efficiency, and multiple protections.

The Meanwell MDR-60-24 60 Watt DIN Rail Power Supply is designed for efficiency and reliability in industrial control and automation. With a 24V DC output and a 2.5A current capacity, it meets the needs of various applications including building automation and instrumentation. It features a compact design with a plastic housing for insulation and reduced weight, making it suitable for tight spaces.

This power supply stands out with its high efficiency of up to 88%, ensuring minimal energy loss. Built-in protections for short circuit, overload, and over voltage enhance safety, while the free air convection cooling method ensures optimal performance. The Meanwell MDR-60-24 complies with international safety standards, making it a reliable choice for electronic projects.

Ideal for applications such as security systems and test measurements, the Meanwell MDR-60-24 60 Watt DIN Rail Power Supply is easy to mount on DIN rails and is equipped with an LED indicator for power status. Choose this power supply for your next project to ensure quality and performance.

Explore the trusted range of Meanwell SMPS at DNA. We provide reliable power supplies for all your electronic needs. Check other Meanwell SMPS that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find a specific part, reach out to us. We can import items not in stock and support both retail and bulk orders. Check out our offerings in development boards, connectors, IGBT, power supply, resistor, and sensor. Contact Us.

Features of Meanwell MDR-60-24 60 Watt DIN Rail Power Supply

• Full range input: 85–264 VAC / 120–370 VDC
• Output: 24V DC @ 2.5A
• Plastic case and insulation class II
• Cooling by free air convection
• High efficiency up to 88%
• Built-in protections: short circuit, overload, over voltage
• Mounts on DIN rail TS35 / 7.5 or 15
• LED indicator for power on
• Compliance with UL, TUV, CE, and CB

Specification of Meanwell MDR-60-24 60 Watt DIN Rail Power Supply

• Output Voltage: 24 Volt DC
• Output Current: 2.5 Ampere
• Rated Power: 60 Watt
• Input Voltage: 85–264 VAC / 120–370 VDC
• Efficiency: Up to 88%
• Cooling Method: Free air convection
• Operating Temperature: –20°C to +70°C
• Dimensions (L×W×H): 40 × 90 × 100 mm

Applications of Meanwell MDR-60-24 60 Watt DIN Rail Power Supply

• Industrial control and PLC
• Building automation
• Test and measurement
• Security systems
• Embedded systems

Related Links for Meanwell MDR-60-24 60 Watt DIN Rail Power Supply

/ul>
• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Meanwell MDR-60-24 SMPS
