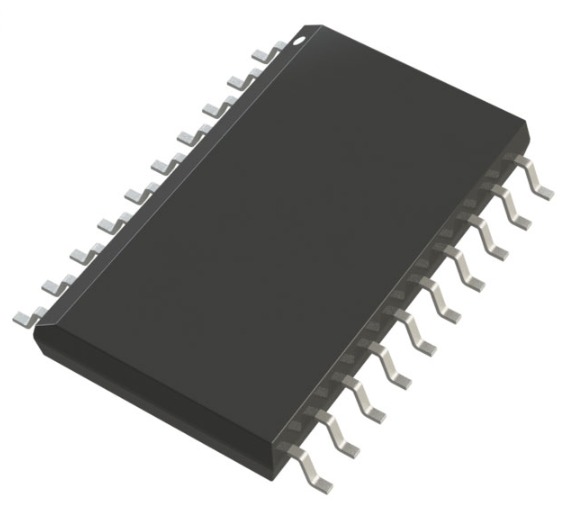

ADM3251EARWZ Isolated, Single-Channel RS-232 Line Driver/Receiver IC

ADM3251EARWZ Isolated, Single-Channel RS-232 Line Driver/Receiver IC

The ADM3251EARWZ is an isolated RS-232 transceiver that combines Analog Devices' iCoupler® digital isolation technology and an RS-232 line driver/receiver into a single, compact package. This device is equipped with integrated power conversion, eliminating the need for external DC-DC converters. It offers 2.5 kV RMS isolation between the logic and bus sides, ensuring data integrity in noisy environments.

DNA solutions, Nashik has various types of Isolator. Check out our complete collection of Isolator.

• High Voltage Isolation: Protects low-voltage logic from high-voltage spikes

• Integrated DC-DC Converter: Provides isolated power for the RS-232 transceiver, simplifying design and reducing external components

• High Speed and Full-Duplex Communication: Achieves data rates up to 460 kbps suitable for a wide range of RS-232 applications

• Compact Design: Single-package solution reduces PCB space and complexity

Specifications of ADM3251EARWZ Isolated, Single-Channel RS-232 Line Driver/Receiver IC

• Isolation Rating: 2500 V RMS

• RS-232 Communication: Up to 460 kbps & Full Duplex

• Number of Channels: 1 Driver and 1 Receiver

• Supply Voltage: Primary Side- 3.0 V to 5.5 V

• ESD Protection: ±15 kV

• Package: 20-lead SOIC

• Temperature Range: -40°C to +85°C

Applications of ADM3251EARWZ Isolated, Single-Channel RS-232 Line Driver/Receiver IC

• High Voltage Isolation

• Integrated DC-DC Converter

• High Speed and Full-Duplex Communication

• ESD Protection

• Compact Design

Package Includes

      1 x ADM3251EARWZ Isolated, Single-Channel RS-232 Line Driver/Receiver IC
