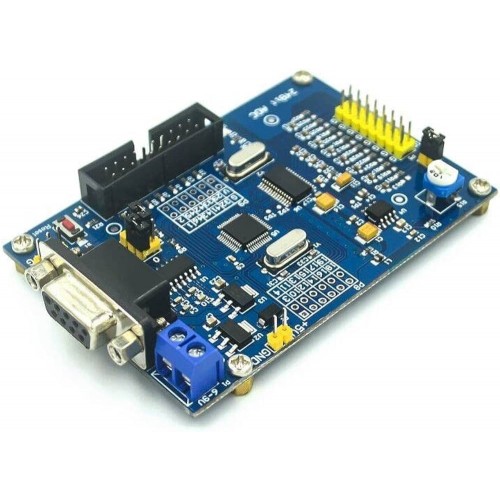

ADS1256 24bit High Precision ADC STM32F103C8T6 Module
- Stock: Out Of Stock
- SKU: 7630 | DAF121
-
Rs. 5,198.70 (inc GST)
Rs.4,405.67 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
ADS1256 24bit High Precision ADC STM32F103C8T6 Module
ADS1256 24bit High Precision ADC STM32F103C8T6 Module
This board has taken all the IO ports of the STM32F103C8T6 microcontroller, and users can develop their own functions. The program can be downloaded through the serial port. The AD chip has a reference voltage of 2.5V and is generated by a precision voltage regulator. A potentiometer is provided on the board to test the AD input. The voltage generated by the voltage divider of the potentiometer is connected to AN0 through the S3 jumper, which is suitable for debugging the board without the sensor. If you do not use this test, you can take the S3 jumper off and input the test voltage directly from AN0--AN7. (The voltage input to the AD input cannot be higher than 5V).
DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of ADS1256 24bit High Precision ADC STM32F103C8T6 Module
- Power input terminal, input voltage range 5.5V - 12V (5V power supply, please connect directly to 2);
- 5V power supply input terminal (1.2 two power supplies, only one can be connected);
- STM32F103C8T6 leads GPIO, which is convenient for secondary development. The silk screen directly corresponds to the pin number of the chip;
- Brand new original master MCU: STM32F103C8T6;
- 2.5V benchmark, ultra-high precision, low temperature drift;
- Adjustable potentiometer, the output adjustable voltage is linked to AIN0/ I0;
Specifications of ADS1256 24bit High Precision ADC STM32F103C8T6 Module
- ADC: ADS1256 (24-bit resolution)
- Microcontroller: STM32F103C8T6 (32-bit ARM Cortex-M3)
- Input Channels: 8 (single-ended) or 4 (differential)
- Gain Settings: Programmable gain amplifier with options (1x, 2x, 4x, 8x, 16x, 32x, 64x)
- Data Rate: Programmable up to 30,000 samples per second
- Input Voltage Range: -2.5V to +2.5V (with PGA gain setting of 1)
Package Includes
1 x ADS1256 24bit High Precision ADC STM32F103C8T6 Module
