Product Images are shown for illustrative purposes only and may differ from actual product.

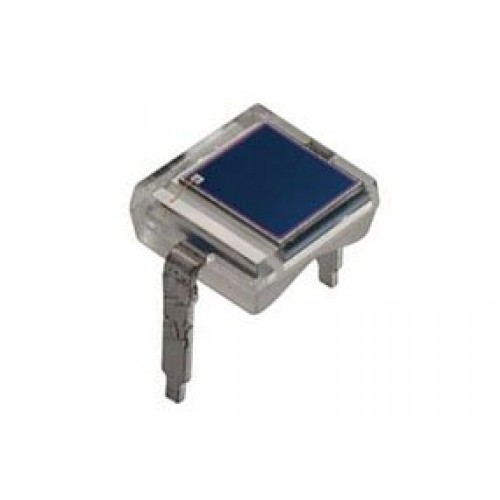

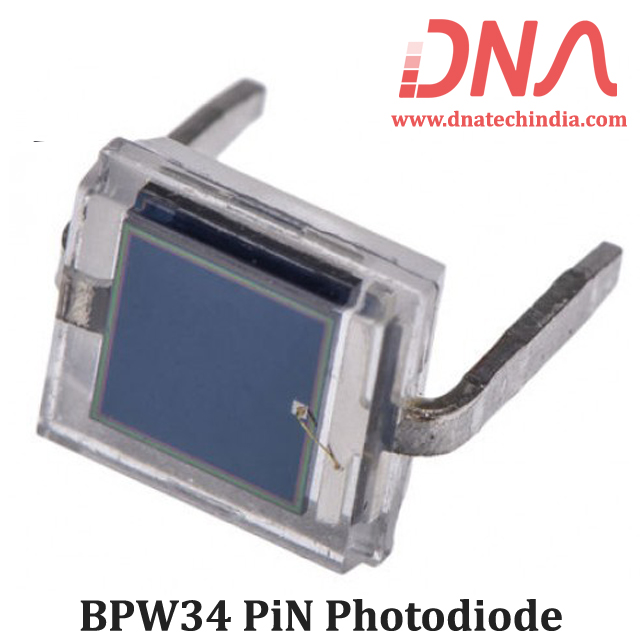

BPW34 PiN Photodiode

Write a review | 6 reviews

Stock: 20
Availability: InStock priceValidUntil: 2026-09-16
SKU: 1056 | DAA550

Rs. 82.60 (inc GST)
Rs.70.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

BPW34 PiN Photodiode

The BPW34 is a tiny, general purpose PiN Photodiode.

This photodiode has a ton of uses, one of which is to use it is a mini solar cell to power your project. The cell is sensitive to a wide range of light wavelengths (430-1100nm), so it should produce power in a number of different settings. The rated open circuit voltage is 350mV (900nm, 1mW/cm2 light source), and short circuit current is 47μA.

We have Various sizes of Diode. Check out our complete collection of Diode.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of BPW34

Package type : leaded
Package form : top view
Radiant sensitive area (in mm2) : 7.5
High photo sensitivity
High radiant sensitivity
Suitable for visible and near infrared radiation
Fast response times
Angle of half sensitivity : phi = ± 65°
Lead (Pb)-free, RoHS compliant
Off-state voltage : 60V
Wavelength of max. photosensitivity : 900nm
Transmission angle : 130o
Photoelectric current : 50uA

Important Links on BPW34 Photodiode

BPW34 Optimized Circuit
Measuring Light Intensity using BPW34

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
