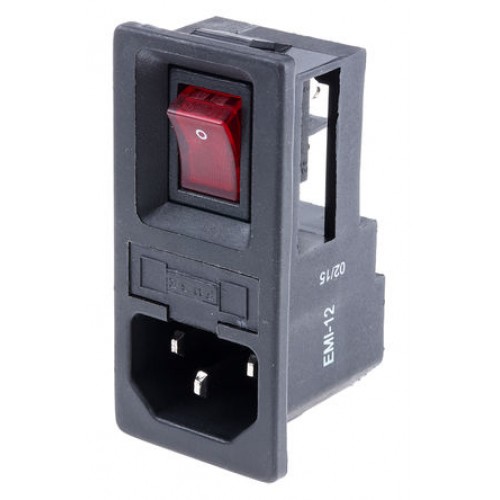

EMI-12 Power Inlet

This is a 250 volts 6 ampere IEC Inlet with fuse holder & illuminated DPST Power Switch all in one package.

Specification of Power Inlet EMI-12 :

  • Current & voltage rating : 6Amp, 250VAC
  • Panle thickness : 0.8 to 2.5 mm
  • Permissible temperature - For soldering : 270 deg.C for 5 seconds max.
  • Permissible temperature - With/without load : 0 to 70deg. C
  • Approvals : Self-Certified
  • Reference Standard : IEC 60320-1
  • Material - Body : Nylon
  • Material - Terminals : Copper Alloy, Tin plating
  • Terminals : Solder-type / Fast on 4.8X 0.8
  • Mounting : Panel, Snap-in type
  • HV Breakdown test for 1 Minute : 2 KVAC
  • Insulation Resistance at 500 VDC : 1000 Mohms min.
  • Contact Resistance (Initial) : 10 mohms max.
  • Product Description : IEC Inlet with fuse holder & illuminated DPST Switch

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
