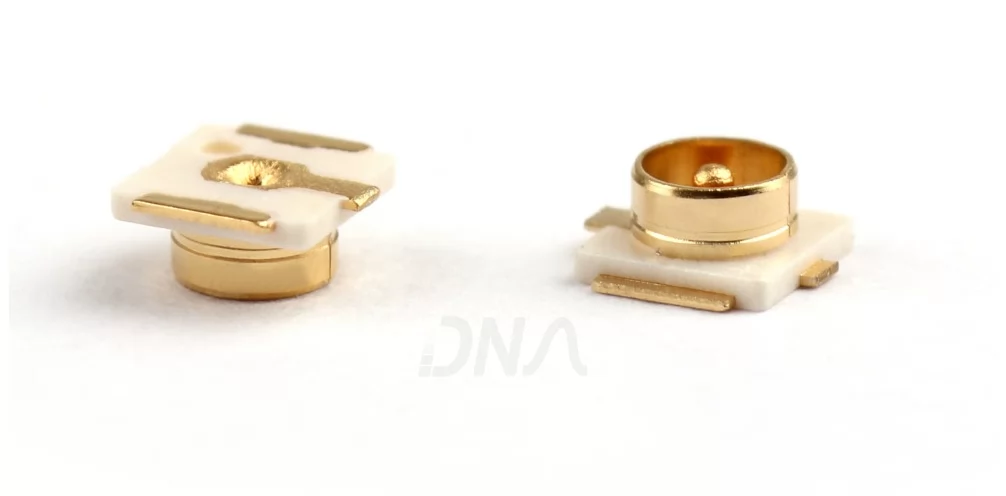

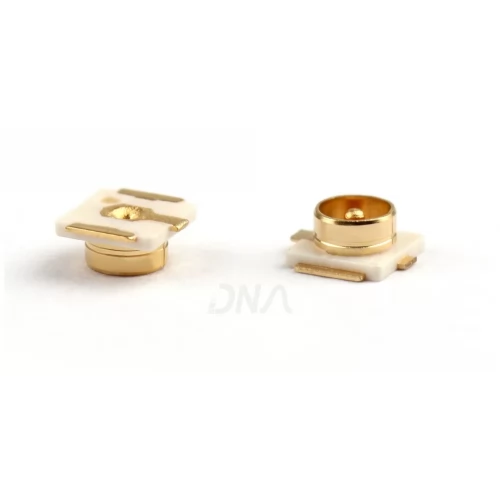

UFL/IPEX/MHF1 RF Male Connector

UFL IPEX MHF1 RF Male Connector for PCB antenna connections; Frequency range: 0-6 GHz; Insulation resistance: 500 MΩ Min.

The UFL/IPEX/MHF1 RF Male Connector is designed for efficient PCB layouts requiring UFL antenna connections. This connector facilitates seamless communication between antennas and devices, ideal for applications in WiFi, GSM, and GPS modules. With a frequency range up to 6 GHz and a characteristic impedance of 50 Ohms, it ensures optimal performance in various environments.

This UFL connector features a robust design with a copper shell plating, ensuring durability and reliability. It withstands voltages up to 200 volts AC and operates within a wide temperature range of -40°C to +85°C. The UFL/IPEX/MHF1 RF Male Connector guarantees excellent insulation resistance, making it suitable for demanding applications.

Whether you are designing communication devices or upgrading existing systems, the UFL IPEX MHF1 RF Male Connector is a dependable choice. Its compact size and superior performance make it an essential component for any electronic project in India.

Explore the reliability of Connectors and Cables at DNA. Discover the UFL IPEX MHF1 RF Male Connector and other essential products in our Connectors and Cables category. Check other "Connectors and Cables" that we have in stock.

If you are looking for specific electronic components, reach out to us at DNA. We can help you find parts like Sensor Modules, Programmers, Super Capacitors, and more. We also offer import options and support for retail as well as bulk purchases. Contact Us.

Features of UFL/IPEX/MHF1 RF Male Connector

• Compact design
• High frequency range
• Durable copper shell plating
• Excellent insulation resistance
• Wide operating temperature range

Specification of UFL/IPEX/MHF1 RF Male Connector

• Frequency range: 0 to 6 GHz
• Characteristic impedance: 50 Ohm
• Insulation resistance: 500 MΩ Min
• Withstand voltage: 200 volt AC
• Operating temperature: -40 to +85 °C

Applications of UFL/IPEX/MHF1 RF Male Connector

• Antenna connections for WiFi
• GSM communication devices
• GPS modules
• PCB layout integration
• High-frequency applications

Related Links for UFL/IPEX/MHF1 RF Male Connector

• Other Products from Connectors and Cables Category

Package Includes

• 1 X UFL/IPEX/MHF1 RF Male Connector
