Product Images are shown for illustrative purposes only and may differ from actual product.

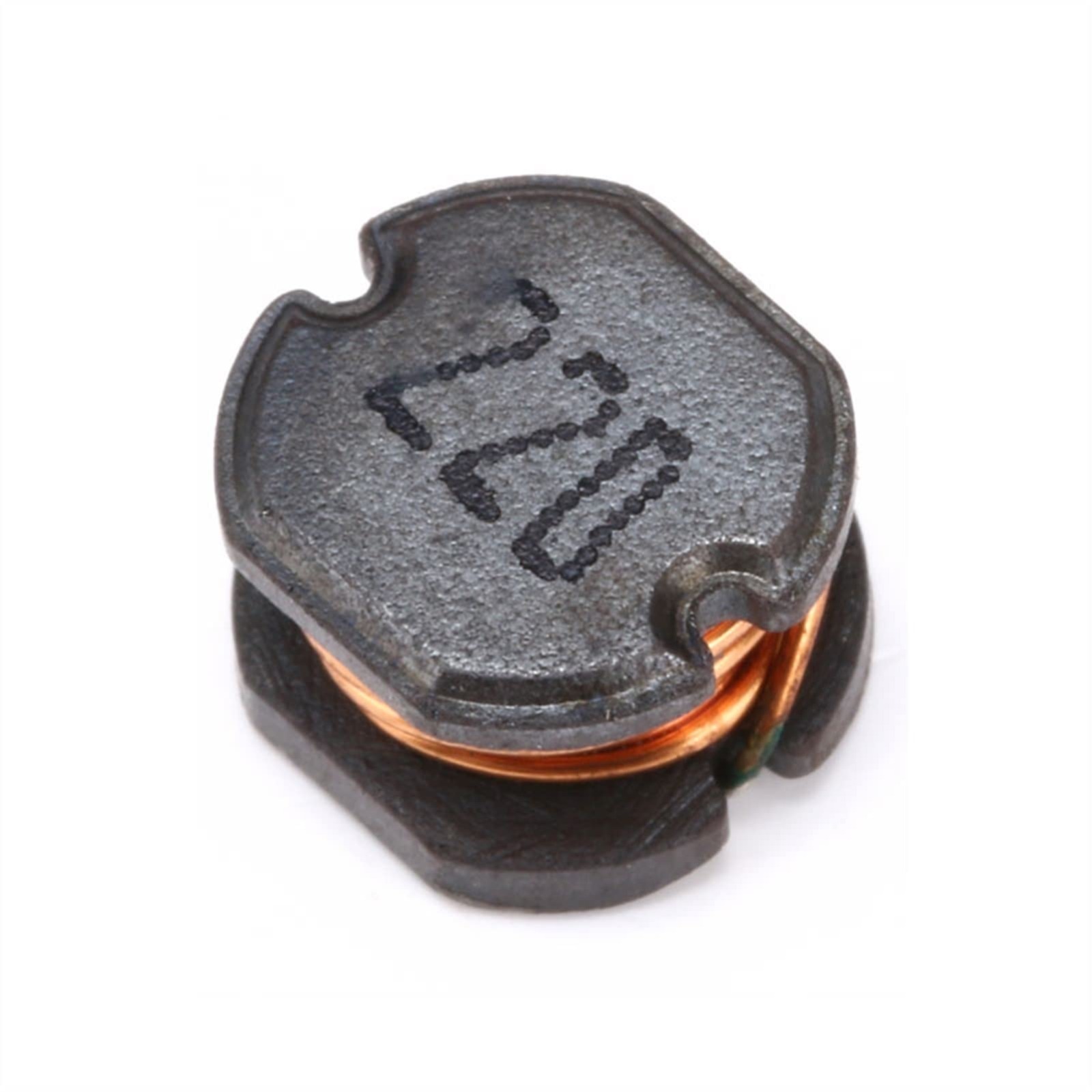

CD75 22UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
- Stock: 50
- SKU: 7596 | DAE926
-
Rs. 16.52 (inc GST)
Rs.14.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
CD75 22UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
CD75 22UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
A CD75 22μH Surface Mount Power Inductor (22 micro H) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads on a surface mount component. The CD75 22µH inductor features a ferrite core, which helps maintain stable inductance under high current loads and reduces electromagnetic interference (EMI). Its design is optimized for efficient energy transfer in compact electronic circuits. This inductor is often used in power management applications where low DC resistance and stable performance are essential.
DNA solutions, Nashik has various types of Inductor's. Check out our complete collection of Inductor's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of CD75 22UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
- High Current Capability: Designed to handle significant DC currents without saturating, which is essential for power applications.
- Low DC Resistance (DCR): Reduces power loss, increasing efficiency and minimizing heat generation.
- Compact SMD Package: Surface-mount design for easy integration in PCB layouts, saving space in compact designs.
- Stable Inductance: Maintains consistent inductance over a wide range of frequencies and temperatures, ensuring reliable performance.
- Durability and Reliability: Built for long-term reliability in demanding applications, such as DC-DC converters and power filters.
Specifications of CD75 22UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
- Inductance: 22 µH ±20%
- DC Resistance (DCR): Typically around 0.03Ω (may vary depending on specific model)
- Saturation Current: Typically rated around 3A to 4A (exact rating depends on manufacturer specifications)
- Core Material: Ferrite, offering efficient magnetic properties for stable energy storage.
- Operating Temperature Range: -40°C to +125°C, suitable for various operating environments.
Package Includes
- 1 x CD75 22UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
