CD75 330UH (331) SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

CD75 330UH (331) SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

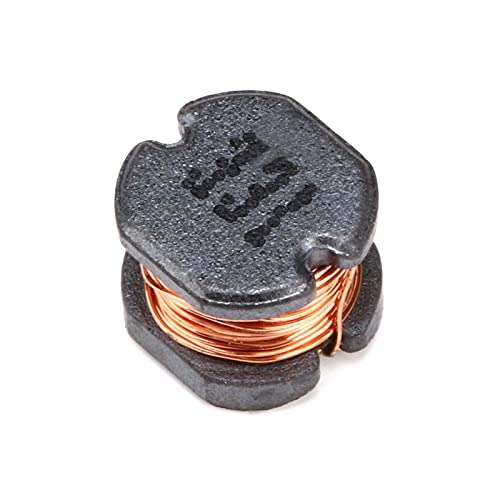

A CD75 330μH Surface Mount Power Inductor (330 micro H) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads on a surface mount component. The CD75 330µH inductor utilizes a ferrite core to provide stable magnetic properties, allowing it to maintain consistent inductance across varying current loads. This makes it suitable for high-efficiency power management circuits, where smooth current flow and energy storage are essential. The inductor’s construction also contributes to reduced core losses and stable performance over a wide range of frequencies and temperatures.

DNA solutions, Nashik has various types of  Inductor's. Check out our complete collection of  Inductor's.

• High Inductance: 330µH, ideal for applications requiring high inductance in a compact design.

• Compact SMD Package: Surface-mount design for easy integration in PCB layouts, saving space.

• High Current Capability: Supports high DC currents with minimal risk of saturation, essential for power circuits.

• Low DC Resistance (DCR): Minimizes power loss and improves energy efficiency, ideal for power-sensitive designs.

• Stable Performance: Maintains inductance across a wide range of operating frequencies and temperatures.

• Reliable and Durable: Engineered for long-term reliability in demanding power applications like DC-DC converters and power filters.

Specifications of CD75 330UH (331) SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

• Inductance: 330 µH ±20%

• DC Resistance (DCR): Typically around 0.45Ω (specific values may vary slightly by manufacturer)

• Saturation Current: Rated up to approximately 1A (exact rating depends on model and manufacturer specifications)

• Core Material: Ferrite, ensuring low core loss and stable magnetic properties.

• Operating Temperature Range: -40°C to +125°C, suitable for various environments.

• Mounting Type: Surface Mount Device (SMD), optimized for space-constrained PCBs.

Package Includes

• 1 x CD75 330UH (331) SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
