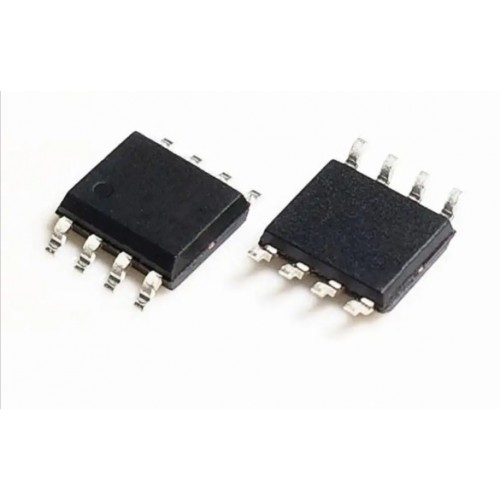

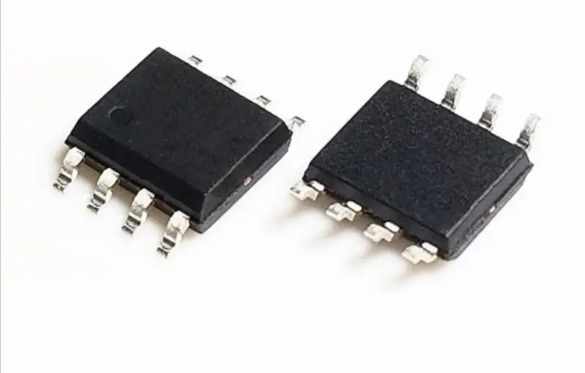

CR6842S Current-Mode PWM Controller SMD IC

CR6842S Current-Mode PWM Controller SMD IC

CR6842S PWM Controller IC for flyback converters with low start-up current and over-voltage protection.

The CR6842S Current-Mode PWM Controller SMD IC is ideal for high-performance offline flyback converter applications. It operates efficiently in green-power burst mode, optimizing performance during light-load conditions. This makes it an excellent choice for power adapters and battery charger adapters in India. The CR6842S features low start-up current of approximately 7.5µA and low operating current of around 3.0mA, ensuring energy efficiency. With integrated over-voltage protection and under-voltage lockout, it offers reliable operation for various applications.

Designed for durability, the CR6842S Current-Mode PWM Controller SMD IC provides programmable over-temperature protection and built-in 1ms soft start to minimize inrush current. Its operating temperature range of -40°C to 85°C suits diverse environments. This controller is perfect for use in open frame switching power supplies, LCD monitors, and LED drivers, catering to the growing demands of the Indian electronics market.

Explore the efficiency of the CR6842S for your projects and ensure stable performance in your designs. With its compact SOP-8 package type and robust features, it is a reliable choice for any electronic component application.

Explore our range of Power Devices at DNA. The Power Devices category offers reliable solutions for your electronics projects. Check other Power Devices that we have in stock.

If you are searching for specific electronic components, DNA can assist. We can import parts if they are not available and support both retail and bulk orders. Consider our selection of IGBTs, DC to DC Converter Modules, Power Supplies, and Connectors. Contact Us

Features of CR6842S Current-Mode PWM Controller SMD IC

• Low Start-up Current
• Low Operating Current
• Current Mode Operation
• Under Voltage Lockout (UVLO)
• Over Voltage Protection (OVP)
• Programmable Over-Temperature Protection
• Built-in Soft Start

Specification of CR6842S Current-Mode PWM Controller SMD IC

• Package Type: SOP-8 SMD
• Gate Output Voltage: Soft clamped at 16.5V
• Over Voltage Protection Threshold: 25.5V
• Soft Start Duration: 1ms
• Operating Temperature Range: -40°C to 85°C

Applications of CR6842S Current-Mode PWM Controller SMD IC

• Power Adapters
• Battery Charger Adapters
• Open Frame Switching Power Supplies
• LCD Monitors
• LED Drivers

Package Includes

• 1 X CR6842S Current-Mode PWM Controller SMD IC
