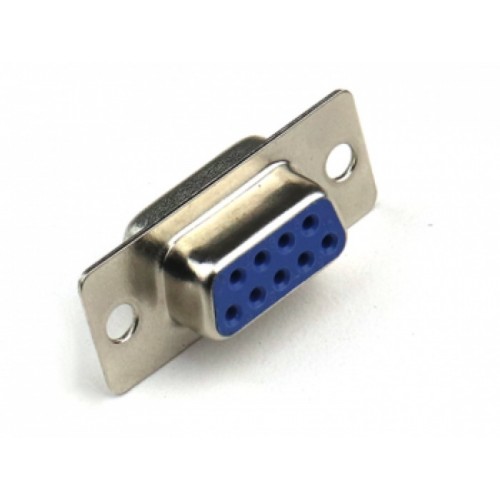

DB 9 Female Connector - D-Subminiature Serial Connector

DB 9 Female Connector for serial communication with 9-pin configuration, panel-mountable, and secure screw-lock connection.

The DB 9 Female Connector is a reliable D-subminiature connector with 9 pins arranged in two rows, designed for serial communication (RS-232). This connector features recessed sockets to accept male pins, ensuring a secure and stable connection. The DB 9 Female Connector is commonly used in applications such as CNC machines, Point of Sale systems, and embedded systems for debugging and programming. Its durable construction, with options for EMI shielding, makes it suitable for various industrial environments.

Ideal for networking equipment and medical devices, the DB 9 Female Connector supports a current rating of up to 5A and voltage ratings of up to 300V AC, depending on the manufacturer. Its panel-mountable or cable-mountable design allows for easy installation in any setup. Choose the DB 9 Female Connector for a robust solution to your connectivity needs.

Explore a wide range of Connectors and Cables at DNA solutions. The DB brand offers quality connectors for all your electronic needs. Check other "Connectors and Cables" that we have in stock.

If you need additional electronic components, reach out to us. We can import parts if they are not available. We support both retail and bulk orders. Consider related items like DC to DC Converter Modules, Programmers, Sensors, HMI Displays, Super Capacitors, and Resistors. Contact Us

Features of DB 9 Female Connector

• 9-pin D-sub configuration
• Female version with recessed sockets
• Panel-mountable or cable-mountable
• Secure screw-lock connection
• Durable plastic or metal shell for EMI shielding

Specification of DB 9 Female Connector

• Pin Count: 9 (in 2 rows: 5 + 4)
• Gender: Female (sockets)
• Current Rating: Typically 5A max per contact
• Voltage Rating: Up to 300V AC
• Contact Resistance: Typically ≤ 30 mΩ
• Insulation Resistance: ≥ 1000 MΩ

Applications of DB 9 Female Connector

• CNC Machines
• Point of Sale Systems
• Embedded Systems
• Networking Equipment
• Medical Equipment

Package Includes

• 1 X DB 9 Female Connector
