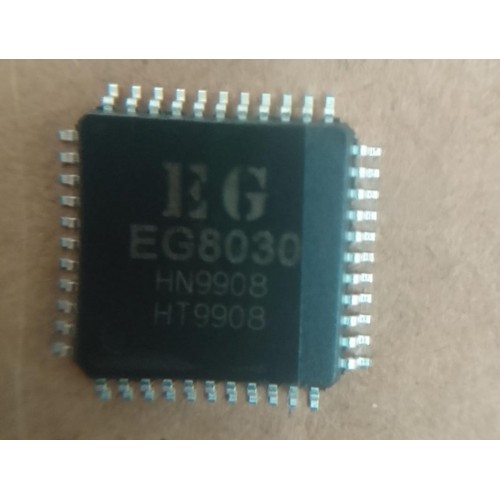

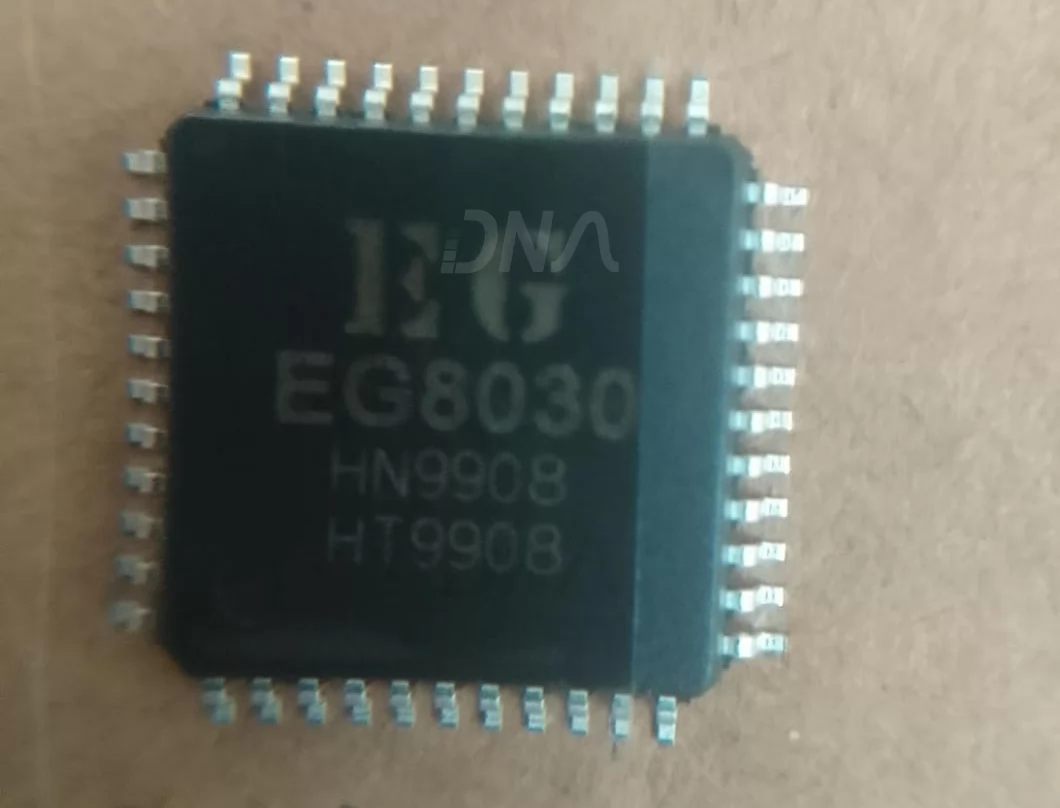

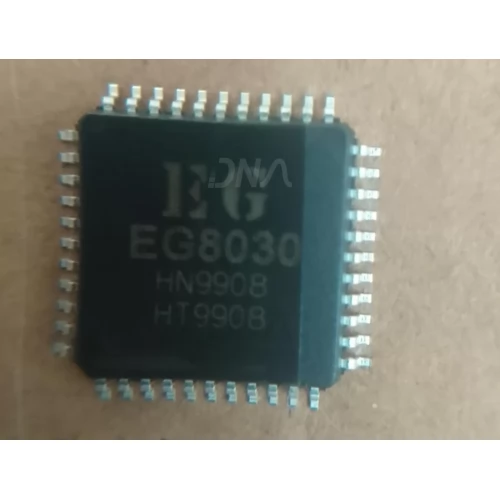

EG8030 SMD IC (Three-phase SPWM Inverter ASIC)


Write a review | 1 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-10-12

  • SKU: 3937 | DAG629

Availability: InStock priceValidUntil: 2026-10-12

  • Rs. 706.23 (inc GST)
    Rs.598.50 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

EG8030 SMD IC Three-phase SPWM Inverter ASIC

EG8030 SMD IC for three-phase SPWM inverter; 5V supply; 16MHz crystal oscillator.

The EG8030 SMD IC Three-phase SPWM Inverter ASIC offers advanced functionality for three-phase pure sine wave inverters. It operates with a 5V single power supply and includes an external 16MHz crystal oscillator. This chip features a configurable operation mode, making it suitable for DC-DC-AC power conversion and provides real-time processing of voltage, current, and temperature feedback. The EG8030 SMD IC ensures high precision with minimal harmonic distortion and includes vital protection functions like overvoltage and overcurrent safeguards.

Designed with CMOS technology, the EG8030 SMD IC Three-phase SPWM Inverter ASIC integrates a soft start circuit, dead-time control, and a phase sequence reversal function. It also supports independent closed-loop voltage regulation, allowing for precise control in various applications. This makes it an ideal choice for anyone looking to enhance their power device systems.

Incorporate the EG8030 SMD IC into your projects for reliable performance and efficiency. Whether for industrial applications or DIY electronics, this inverter ASIC is a dependable solution to meet your power management needs.

Explore the range of Power Devices at DNA. The EG8030 SMD IC from a trusted manufacturer is perfect for your electronic projects. Check other Power Devices that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find specific parts, let us know. We can import them for you and support both retail and bulk orders. Check out our selection of inductors, capacitors, connectors, sensors, resistors, and LCDs. Contact Us.

Features of EG8030 SMD IC Three-phase SPWM Inverter ASIC

  • 5V single power supply
  • External 16MHz crystal oscillator
  • Four working modes
  • Independent closed-loop voltage regulation
  • Real-time voltage, current, and temperature feedback
  • Overvoltage and overcurrent protection
  • Soft start circuitry
  • Phase sequence reversal function
  • LED status indication and buzzer alarm

Specification of EG8030 SMD IC Three-phase SPWM Inverter ASIC

  • Max operating voltage: 5V
  • Frequency range: 16MHz
  • Package type: SMD
  • Technology: CMOS
  • Signal processing: SPWM

Applications of EG8030 SMD IC Three-phase SPWM Inverter ASIC

  • Power conversion systems
  • Renewable energy applications
  • Industrial motor drives
  • Home inverter systems
  • Electric vehicle chargers

Related Links for EG8030 SMD IC Three-phase SPWM Inverter ASIC

Package Includes

  • 1 X EG8030 SMD IC (Three-phase SPWM Inverter ASIC)
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
