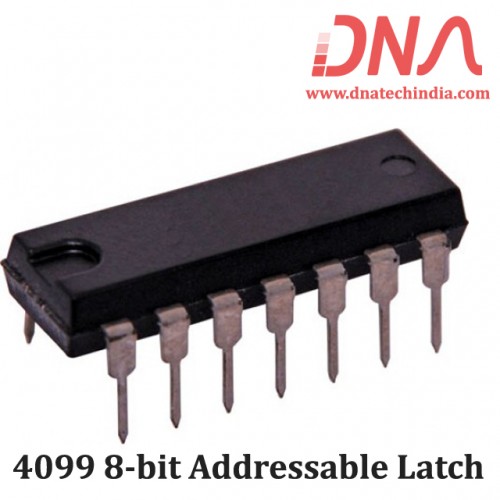

4099 8-bit Addressable Latch

Name: 4099 8-bit Addressable Latch
SKU: DAA113
Price: 18.88 INR
Availability: InStock

Write a review | 0 reviews

Stock: 10

SKU: 258 | DAA113

Rs. 18.88 (inc GST)
Rs.16.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

CD4099 8-bit Addressable Latch

CD4099BMS 8-bit addressable latch is a serial input, parallel output storage register that can perform a variety of functions.

Data are inputted to a particular bit in the latch when that bit is addressed (by means of inputs A0, A1, A2) and when WRITE DISABLE is at a low level. When WRITE DISABLE is high, data entry is inhibited; however, all 8 outputs can be continuously read independent of WRITE DISABLE and address inputs.

A master RESET input is available, which resets all bits to a logic “0” level when RESET and WRITE DISABLE are at a high level. When RESET is at a high level, and WRITE DISABLE is at a low level, the latch acts as a 1 of 8 demultiplexer; the bit that is addressed has an active output which follows the data input, while all unaddressed bits are held to a logic “0” level.

We have Various sizes of 4000 Series IC. Check out our complete collection of 4000 Series IC.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
