Product Images are shown for illustrative purposes only and may differ from actual product.

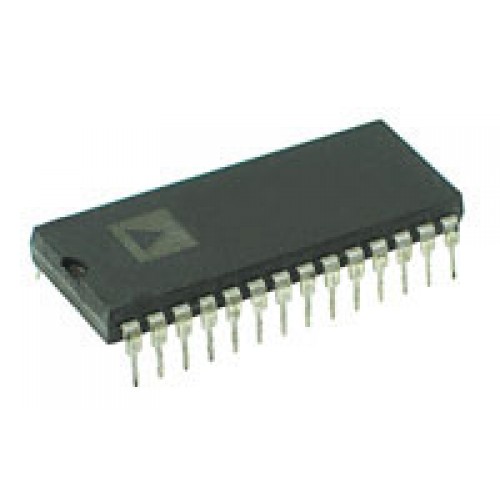

AD574 12-Bit A/D Convertor


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-04-24

  • SKU: 454 | DAA004

Availability: NotInStock priceValidUntil: 2026-04-24

  • Rs. 1,652.00 (inc GST)
    Rs.1,400.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

AD574 12-Bit A/D Convertor

AD574 12bit Analog to DIgital Convertor

The AD574A is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip, and the circuit guarantees full-rated performance without external circuitry or clock signals.
The AD574A design is implemented using Analog Devices' Bipolar/I2L process, and integrates all analog and digital functions on one chip. Offset, linearity and scaling errors are minimized by active laser-trimming of thin-film resistors at the wafer stage. The voltage reference uses an implanted buried Zener for low noise and low drift. On the digital side, I2L logic is used for the successive-approximation register, control circuitry and 3-state output buffers.

Features of AD574

  • Complete 12-Bit A/D Converter with Reference and Clock
  • 8- and 16-Bit Microprocessor Bus Interface
  • Guaranteed Linearity Over Temperature 0°C to +70°C – AD574AJ, K, L –55°C to +125°C – AD574AS, T, U
  • No Missing Codes Over Temperature
  • 35 µs Maximum Conversion Time
  • Buried Zener Reference for Long-Term Stability and Low Gain T.C. 10 ppm/°C max AD574AL 12.5 ppm/°C max AD574AU

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
