Product Images are shown for illustrative purposes only and may differ from actual product.

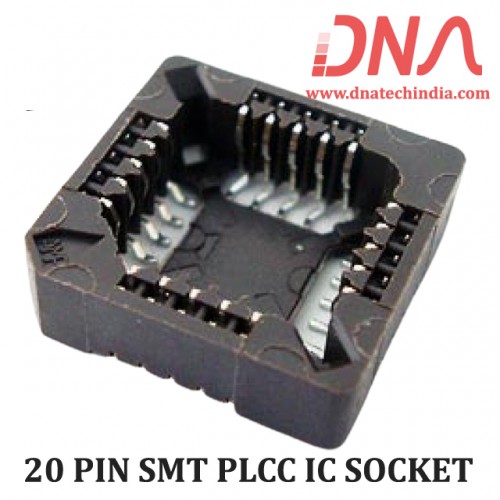

20 PIN SMT PLCC IC SOCKET

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-06-16
Brand: Generic
SKU: 799 | DAA659

Rs. 57.82 (inc GST)
Rs.49.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

20 PIN SMT PLCC IC SOCKET-Base

This is a IC Socket/Based for 20 pin SMD PLCC IC's. This is a SMT base and is advisable on boards with point to point wiring because replacing a defective IC is time consuming and can possibly damage your prototype board. The use of an IC socket is inexpensive compared to the time and effort required to replace an IC chip. IC sockets also reduce the possibility of damaging the board when swapping out IC's.

We have Various sizes of PLCC Ic Socket. Check out our complete collection of PLCC Ic Socket.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of 20 PIN SMD PLCC IC SOCKET

Pin of Positions: 20
Pitch: 1.27mm (0.05")
Mounting Style: Surface Mount
Termination Method: Solder
Package: PLCC
Material: Plastic
Color: Brown
Shape: Square

Body Dimensions of 20 PIN SMD PLCC IC SOCKET

Outer: 15.21mm x 15.21mm (0.60" x 0.60")
Inner: 9.39mm x 9.39mm (0.37" x 0.37")
Height Above Board: 5.0mm (0.18")

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
