• AD7247AAN 24-PIN Digital to Analog Converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

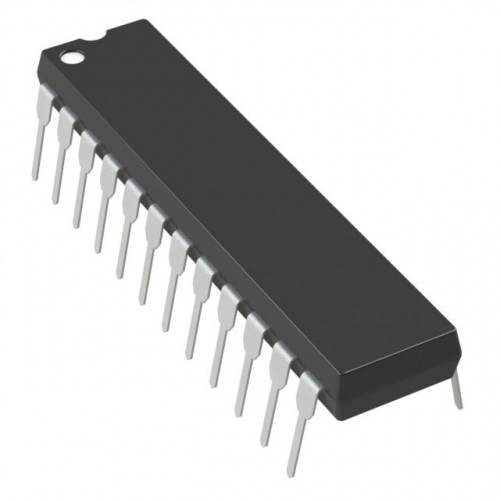

AD7247AAN 24-PIN Digital to Analog Converter IC

  • Stock: Out Of Stock
  • SKU: 7348 | DAG177

Availability: NotInStock priceValidUntil: 2025-09-30

  • Rs. 578.20 (inc GST)
    Rs.490.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

AD7247AAN 24-PIN Digital to Analog Converter IC

AD7247AAN 24 PIN Digital to Analog Converter IC

The AD7247AAN 24 PIN Digital to Analog Converters IC is an enhanced version of the industry standard AD7247. Improvements include operation from 12 V to 15 V supplies, faster interface times and better reference variations with VDD. Additional features include faster settling times. The AD7237A/AD7247A is a complete, dual, 12-bit, voltage output digital-to-analog converter with output amplifiers and Zener voltage reference on a monolithic CMOS chip. No external user trims are required to achieve full specified performance. Both parts are microprocessor compatible, with high speed data latches and interface logic. The AD7247A accepts 12-bit parallel data which is loaded into the respective DAC latch using the WR input and a separate Chip Select input for each DAC.

DNA solutions, Nashik has various types of Analog to Digital Converter IC's. Check out our complete collection of Analog to Digital Converter IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of AD7247AAN 24 PIN Digital to Analog Converters IC

  • Dual 12-Bit DACs: Contains two 12-bit DACs in a single package for generating two analog outputs simultaneously.
  • Monotonic Performance: Guaranteed monotonicity over the full temperature range, ensuring a stable output without glitches.
  • Voltage Output: The DACs provide voltage outputs directly, simplifying circuit design.
  • Buffered Output Amplifiers: Internal amplifiers buffer the output signals, ensuring low impedance and stability.
  • Single or Dual Power Supply Operation: Supports both single-supply (5V) and dual-supply (±12V or ±15V) operations.
  • Simple Microcontroller Interface: Compatible with most microcontrollers and DSPs with an easy-to-use data interface.

Specifications of AD7247AAN 24 PIN Digital to Analog Converters IC

  • Resolution: 12 bits
  • Number of Channels: 2 (dual DAC)
  • Output Settling Time: 8 µs (typical) to ±0.5 LSB
  • Output Current: ±5 mA maximum
  • Integral Non-Linearity (INL): ±1 LSB (max)
  • Differential Non-Linearity (DNL): ±1 LSB (max)
  • Reference Voltage: Requires external reference voltage for setting output range.
  • Digital Interface: Parallel, compatible with standard 8-bit or 16-bit buses.
  • Logic Input Levels: CMOS/TTL compatible.

    Package Includes

    • 1 x AD7247AAN 24 PIN Digital to Analog Converters IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
