Product Images are shown for illustrative purposes only and may differ from actual product.

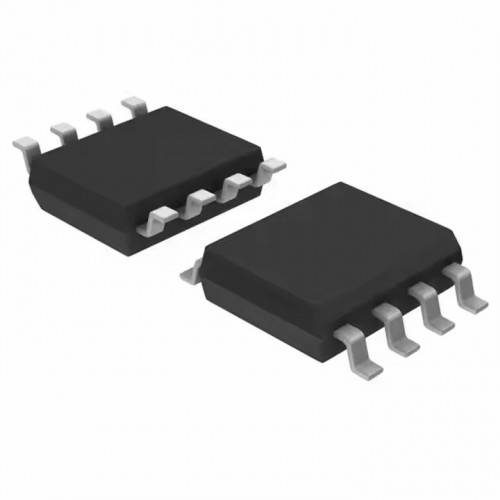

AIP7660EO CMOS Voltage Converters SMD IC

Write a review | 0 reviews

Stock: 169

SKU: 7098 | DAG953

Rs. 29.50 (inc GST)
Rs.25.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

AIP7660EO SMD IC

AIP7660EO SMD IC

The Intersil ICL7660 and ICL7660A are monolithic CMOS power supply circuits which offer unique performance advantages over previously available devices. The ICL7660 performs supply voltage conversions from positive to negative for an input range of +1.5V to +10.0V resulting in complementary output voltages of -1.5V to -10.0V and the ICL7660A does the same conversions with an input range of +1.5V to +12.0V resulting in complementary output voltages of -1.5V to -12.0V. Only 2 noncritical external capacitors are needed for the charge pump and charge reservoir functions. The ICL7660 and ICL7660A can also be connected to function as voltage doublers and will generate output voltages up to +18.6V with a +10V input.

DNA solutions, Nashik has various types of SMD IC's. Check out our complete collection of SMD IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of AIP7660EO SMD IC

Simple Conversion of +5V Logic Supply to 5V Supplies
Simple Voltage Multiplication (VOUT = (-) n VIN)
Typical Open Circuit Voltage Conversion Efficiency 99.9%
Typical Power Efficiency 98%
ICL7660A 100% Tested at 3V
Easy to Use - Requires Only 2 External Non-Critical Passive Components
No External Diode Over Full Temp. and Voltage Range
P b-Free Plus Anneal Available (RoHS Compliant)

Applications of AIP7660EO SMD IC

On Board Negative Supply for Dynamic RAMs
Localized Processor (8080 Type) Negative Supplies
Inexpensive Negative Supplies
Data Acquisition Systems

Package Includes

1 x AIP7660EO SMD IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
