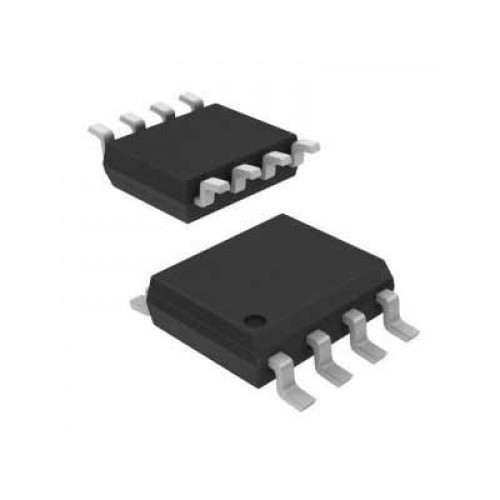

Product Images are shown for illustrative purposes only and may differ from actual product.
EG1181 SMD IC (High-power MOS transistor)
- Stock: 5
- SKU: 7057 | DAG631
-
Rs. 165.20 (inc GST)
Rs.140.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
EG1181 SMD IC (High-power MOS transistor)
EG1181 SMD IC (High-power MOS transistor)
The EG1181 is a single-phase full-wave motor driver IC that integrates the necessary circuitry to drive brushless DC fan motors. It features a built-in Hall sensor amplifier, high output current capability, and protection mechanisms to ensure reliable operation.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of EG1181 SMD IC (High-power MOS transistor)
- Single-Phase Full-Wave Motor Driver: Designed for single-phase full-wave fan motor control applications.
- Wide Operating Voltage Range: Can operate over a broad range of supply voltages, making it versatile for various applications.
- Built-in Hall Sensor Amplifier: Includes a built-in amplifier for Hall sensor signals, simplifying the overall circuit design.
- High Output Current Capability: Capable of driving motors with significant current requirements.
- Thermal Protection: Equipped with thermal shutdown protection to prevent damage from overheating.
- Overcurrent Protection: Includes protection against overcurrent conditions to enhance reliability and safety.
Specifications of EG1181 SMD IC (High-power MOS transistor)
- Operating Voltage Range: 3.5V to 18V DC
- Output Current: Up to 800mA (max)
- Output Voltage: Directly corresponds to the input supply voltage
- Hall Sensor Input Sensitivity: High sensitivity to work with standard Hall effect sensors
- Quiescent Current: Typically around 5mA.
Package Includes
1 x EG1181 SMD IC (High-power MOS transistor)
