  • LM1085 5 Volt Regulator

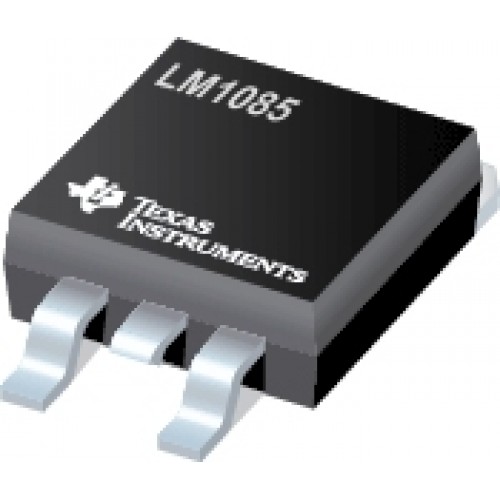

Product Images are shown for illustrative purposes only and may differ from actual product.

LM1085 5 Volt Regulator

  • Rs. 187.62 (inc GST)
    Rs.159.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM1085 5 Volt Regulator

The LM1085 is a 5 Volt regulator with a maximum dropout of 1.5 V at 3 A of load current.

It has the same pin-out as TI’s industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors.  The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.

Features LM1085 Regulator

  • Available in 3.3-V, 5.0-V, 12-V and

  • Adjustable Versions

  • Current Limiting and Thermal Protection

  • Output Current 3 A

  • Line Regulation 0.015% (typical)

  • Load Regulation 0.1% (typical)

Application of LM1085 Regulator

  • High Efficiency Linear Regulators

  • Battery Charger

  • Post Regulation for Switching Supplies

  • Constant Current Regulator

  • Microprocessor Supply
