Product Images are shown for illustrative purposes only and may differ from actual product.

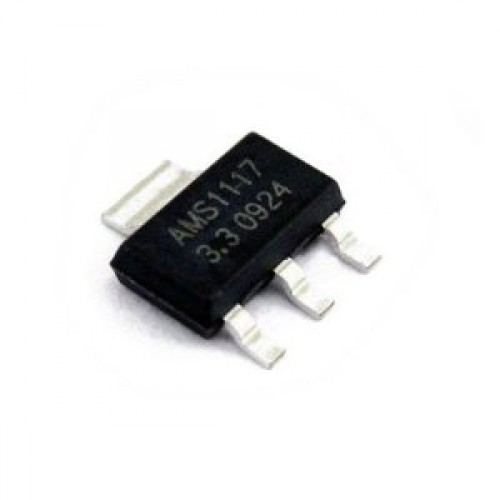

LM1117-3.3V SMD Voltage Regulator

Write a review | 0 reviews

Stock: 50
Availability: InStock priceValidUntil: 2026-03-15
SKU: 860 | DAB646

Rs. 8.92 (inc GST)
Rs.7.56 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

LM1117-3.3V SMD Voltage Regulator

The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current.

It has the same pin-out as National Semiconductor’s industry standard LM317.

This is a fixed 3.3 volts LM1117 SMD voltage Regulator. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed band gap reference to assure output voltage accuracy to within ±1%. The LM1117 series is available in SOT-223, TO-220, and TO-252 D-PAK packages.

Features of LM1117-3.3V

Output Voltage : 3.3V
Space Saving SOT-223 Package
Current Limiting and Thermal Protection
Output Current 800mA
Line Regulation 0.2% (Max)
Load Regulation 0.4% (Max)
Temperature Range : 0˚C to 125˚C

Applications of LM1117-3.3V

2.85V Model for SCSI-2 Active Termination
Post Regulator for Switching DC/DC Converter
High Efficiency Linear Regulators
Battery Charger
Battery Powered Instrumentation

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
