• CN3767 Lead Acid Battery Charger IC With Photovoltaic Cell MPPT Function

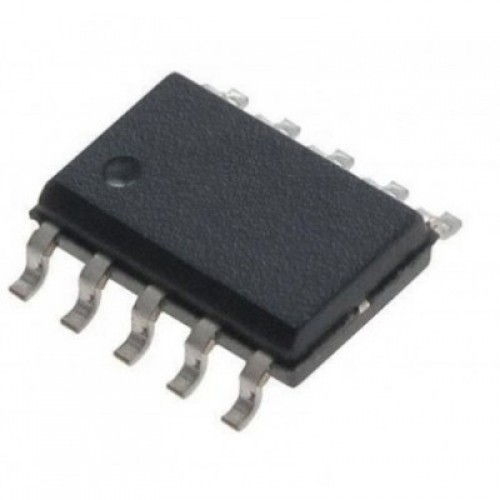

Product Images are shown for illustrative purposes only and may differ from actual product.

CN3767 Lead Acid Battery Charger IC With Photovoltaic Cell MPPT Function

  • Stock: 300
  • SKU: 3722 | DAF110

Availability: InStock priceValidUntil: 2025-09-30

  • Rs. 105.02 (inc GST)
    Rs.89.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

CN3767 Lead Acid Battery Charger IC With Photovoltaic Cell MPPT Function

4 Ampere 12 Volts Lead-Acid Battery Charger IC With Photovoltaic Cell MPPT Function CN3767 IC

The CN3767 IC is a PWM switch-mode battery charger controller for 12V lead-acid battery in a small package using few external components. The CN3767 IC is specially designed for charging 12V lead-acid battery with trickle charge, constant current charge, over-charge and float charge mode. In over-charge and float charge mode, the regulation voltage is internally set. The constant charge current is programmable with a single sense resistor.

The CN3767 Lead Acid Battery Charger IC can be powered by solar panel with MPPT function. Deeply discharged batteries are automatically trickle charged at 17.5% of the programmed constant charge current until the cell voltage exceeds 75% of the regulation voltage in over-charge mode. The over-charge is terminated once the charging current drops to 38% of the constant charge current, then CN3767 will enter into float charge mode. A new charge cycle automatically restarts if the battery voltage falls below 83.95% of the over-charge voltage in float-charge mode. CN3767 will automatically enter sleep mode when input voltage is lower than battery voltage.

Other features include under-voltage lockout and status indication, etc. CN3767 is available in a space-saving 10-pin SSOP package.

DNA solutions, Nashik has various types of Power IC's. Check out our complete collection of  Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Package Includes

1 x CN3767 SMD IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
