  • MAX232 TTL to RS232 IC

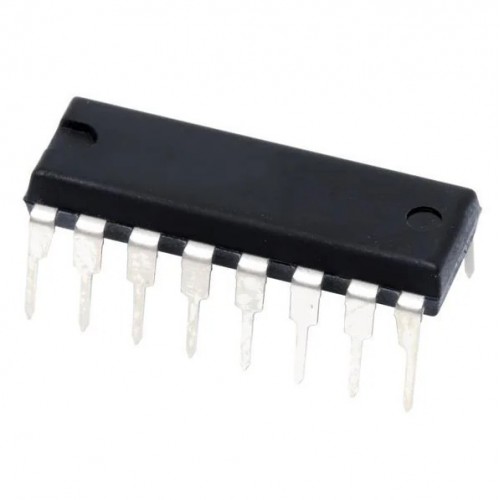

Product Images are shown for illustrative purposes only and may differ from actual product.

MAX232 TTL to RS232 IC

  • Price :

    Rs.25.96 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

MAX232 IC

MAX232 is a communication IC. It is used to convert TTL Signals to RS232 Signal and vice versa. MAX232 provides RS-232 voltage level outputs (approx. ± 7.5 V) from a single + 5 V supply via on-chip charge pumps and external capacitors. This makes it useful for implementing RS-232 in devices that otherwise do not need any voltages outside the 0 V to + 5 V range, as power supply design does not need to be made more complicated just for driving the RS-232 in this case.

The receivers reduce RS-232 inputs (which may be as high as ± 25 V), to standard 5 V TTL levels. These receivers have a typical threshold of 1.3 V, and a typical hysteresis of 0.5 V.

Features of MAX232

  • Operate from Single +5V Power Supply (+5V and +12V—MAX231/MAX239)
  • Low-Power Receive Mode in Shutdown (MAX223/MAX242)
  • Meet All EIA/TIA-232E and V.28 Specifications
  • Multiple Drivers and Receivers
  • 3-State Driver and Receiver Outputs

Applications of MAX232

  • Portable Computers
  • Low-Power Modems
  • Interface Translation
  • Battery-Powered RS-232 Systems
  • Multidrop RS-232 Networks
